Mobile floor coverings · Dance floor
Parquet dance floor Competition-grade real wood, laid without tools
Mobile
Parquet Dancefloor
Easy Installation System
with Tongue & Groove

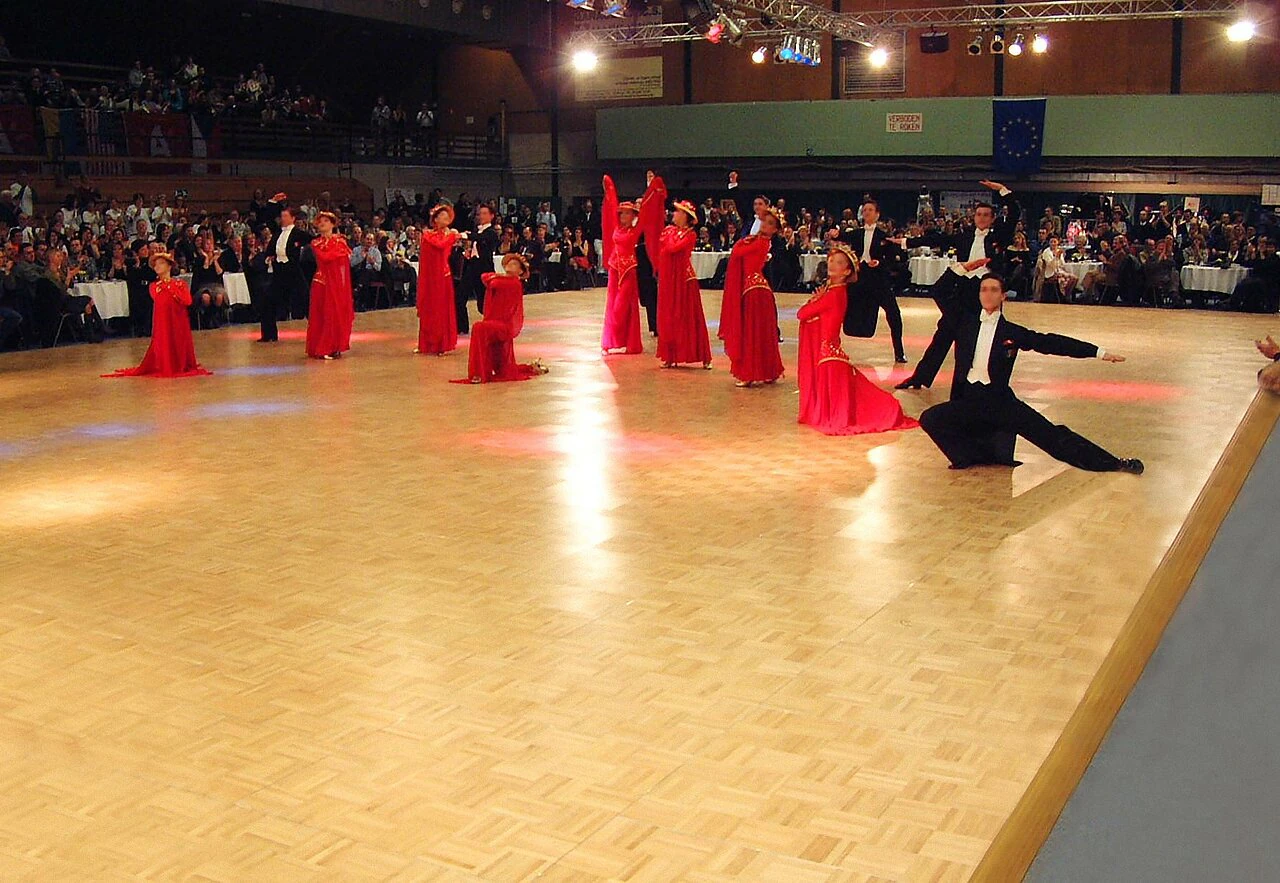

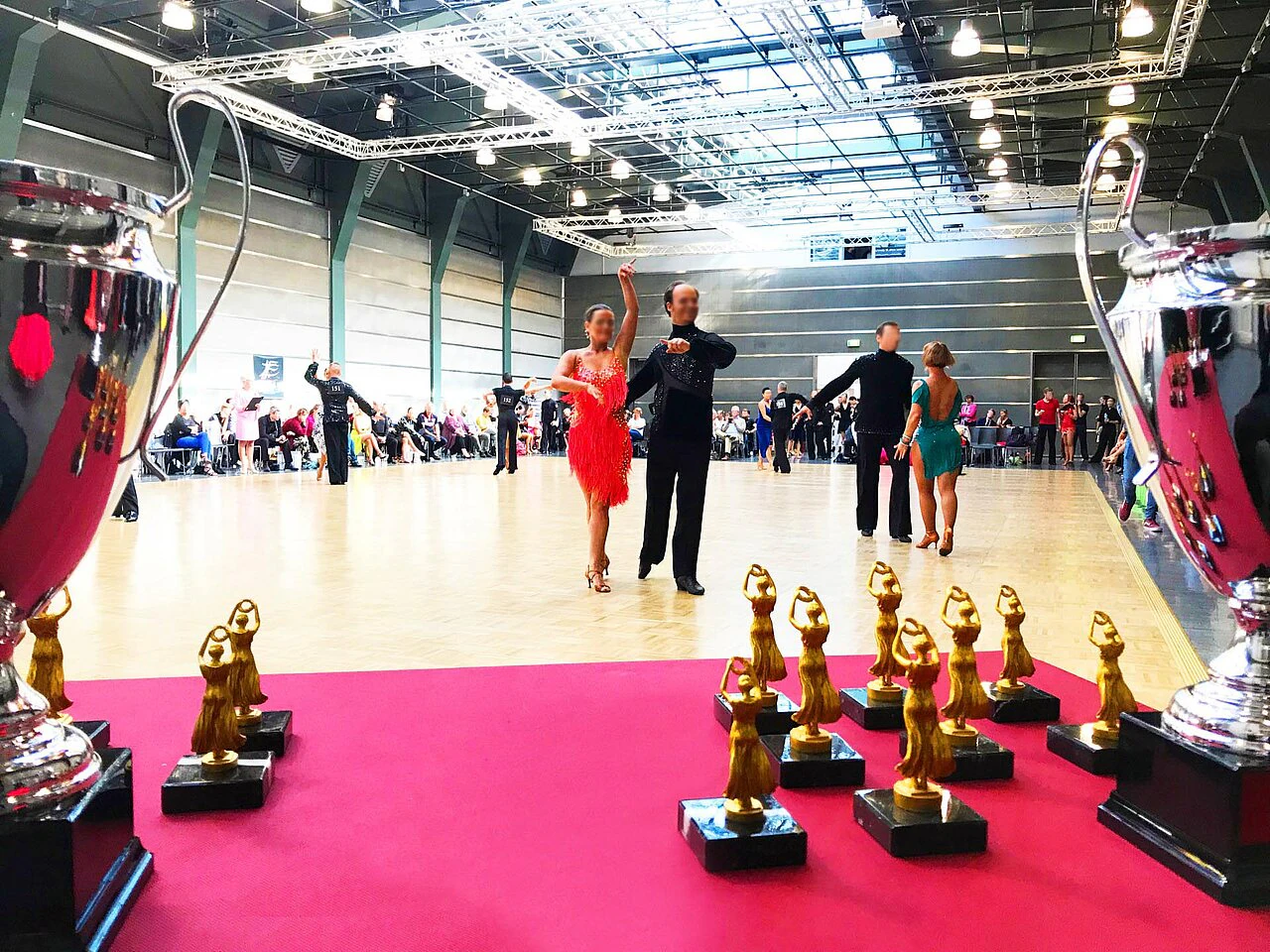

Parquet Dance Floor
in use
Wedding, graduation ball or championship: the parquet dance floor puts an oak parquet floor into any hall. The panels plug together without screws, 100 m² are down in about 30 minutes, and after the event the floor is back on the trolley just as quickly. Professionals also dance on BÜTEC's competition-grade dance floors at championships.
- Laying100 m² in approx. 30 min
- Surfaceoak parquet (real wood)
- Panels95 × 95 cm, half panel 47.5 × 95 cm
- Connectionscrewless, tool-free
- Usecompetition-grade
Benefits
Real wood for the gala and for the championship
Competition-grade
Suitable for competitions, with the feel underfoot that dancers expect from real wood. In use at championships.
Laid standing up
No kneeling and no aids. Each panel is set in and laid down, so temporary helpers can do it too.
No tripping at the edge
The 12 cm wide, bevelled aluminium profile frames the floor and guides the foot gently onto the parquet.
Nothing to break off
No protruding locking hooks, no bolts, no screws. The connection has no wearing parts.
Firm in brick bond
Laid in staggered rows, four corners never meet at one point. The rows hold each other in place.
Wood of your choice
Standard is oak in mosaic decor. Other wood species, decors and surfaces on request.
Laying
From trolley to dance floor Laid in four steps
A short version of the laying instructions. On carpet, a felt brake is also used.
Start on the left
The first row starts at the left edge with a D panel (double nose, black corners). Standard panels follow in the middle and at the right edge.
Set in and lay down
Stand each panel upright with its nose in the profile with the tongue, then lay it down. The connection is closed.
Continue staggered
The second row starts with a half panel, the third with a full one again. This creates the brick bond.
Fit the edge
Lay the edging with its corner and standard pieces, also staggered. The dance floor is ready.
Technical data
Parquet dance floor All data at a glance

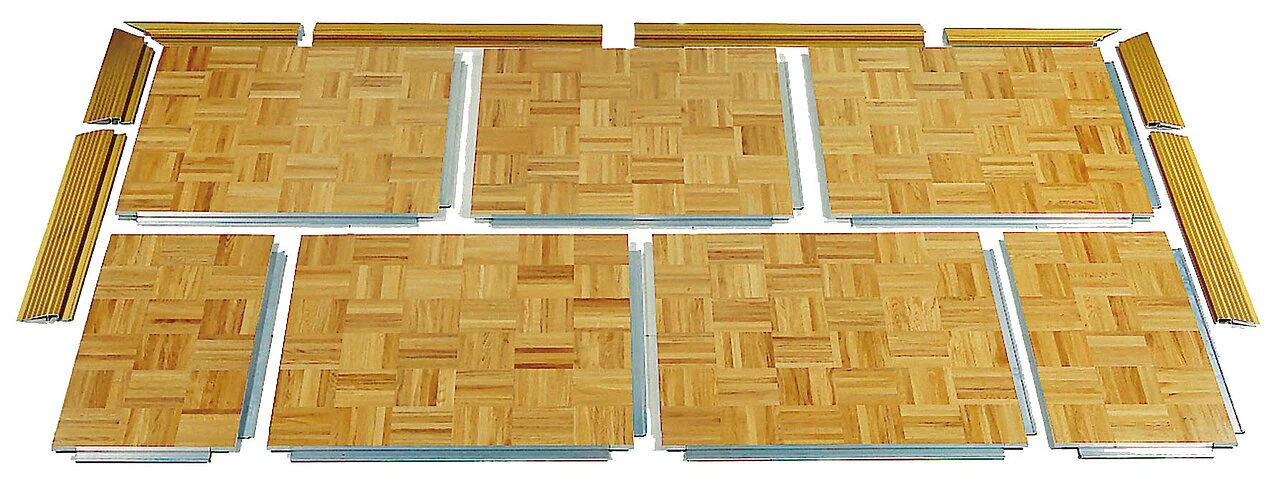

Panels
- Panel sizes
- 95 × 95 cm, half panel 47.5 × 95 cm
- Surface
- oak parquet in mosaic decor (standard); other woods and decors on request
- Parquet
- 9 mm solid oak on a carrier board, in an aluminium frame
- Total thickness
- 25 mm
- Special panels
- for slopes and projections
Laying and storage
- Connection
- screwless, tongue and nose, no aids
- Laying pattern
- brick bond (staggered rows)
- Laying time
- 100 m² ready for use in approx. 30 minutes
- Edge
- aluminium profile, gold or silver, 12 cm wide, bevelled

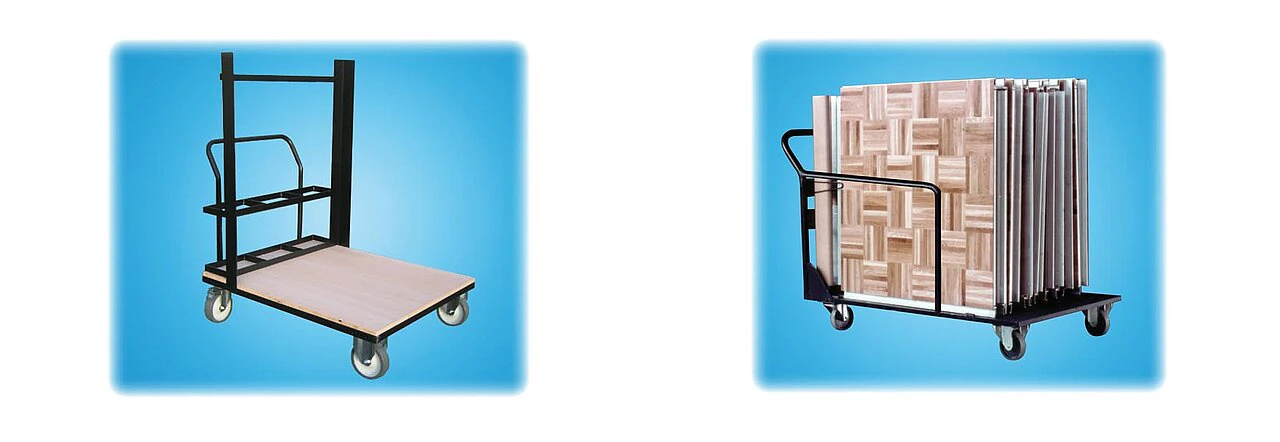

- Storage
- transport trolleys for up to 50 panels, flat or upright
Accessories
Works with Accessories and systems for Parquet dance floor
Everything that goes with this product, sorted by task. Add parts straight to your enquiry.
Comparison
Comparable systems The alternatives side by side
Same job, different focus – the key specs next to each other.
Parquet dance floor
This page- Panels
- 95 × 95 cm, half panel 47.5 × 95 cm
- Laying
- 100 m² in approx. 30 min
- Surface
- oak parquet (real wood)
- Panels
- 125 × 100 cm
- Laying
- 100 m² in approx. 30 min
- Surface
- –
Laying principle
Laying plan and trolleys Brick bond and storage for up to 50 panels
References
In use Galas, balls and championships
Downloads
Brochure and laying instructions Everything on the parquet dance floor
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions
Questions about the parquet dance floor
Is the floor suitable for dance competitions?
Yes. The parquet dance floor is suitable for competitions; professionals also dance on it at championships.
How many people do I need to lay it?
That depends on the area and your schedule. Because the floor is laid without tools and without kneeling, temporary helpers can join in. As a guide: 100 m² are laid and ready in about 30 minutes.
Can the floor lie on carpet?
Yes. On carpet, a felt brake is used under the floor.
Are there other woods than oak?
Yes. Other wood species, decors and surfaces are available on request. For the heaviest use we recommend the dance & multi-purpose floor with laminate.
How much storage space does the floor need?
The panels are stored on transport trolleys for up to 50 panels, flat or upright. The trolley rolls straight to where the floor is laid.
How large should the dance floor be? We put together panels, edging and trolleys
Tell us the area, the occasion and the decor you want. You receive a recommendation and a quote.
Parquet dance floor
100 m² in approx. 30 min100 m² in approx. 30 min · oak parquet (real wood)
