Stages · Trailer
Supertruck stage trailer One person sets up the covered stage in 30 minutes
Supertruck
Stage Trailer
maximum
loads
appliance compartment
compartment
colour selection
of the plane

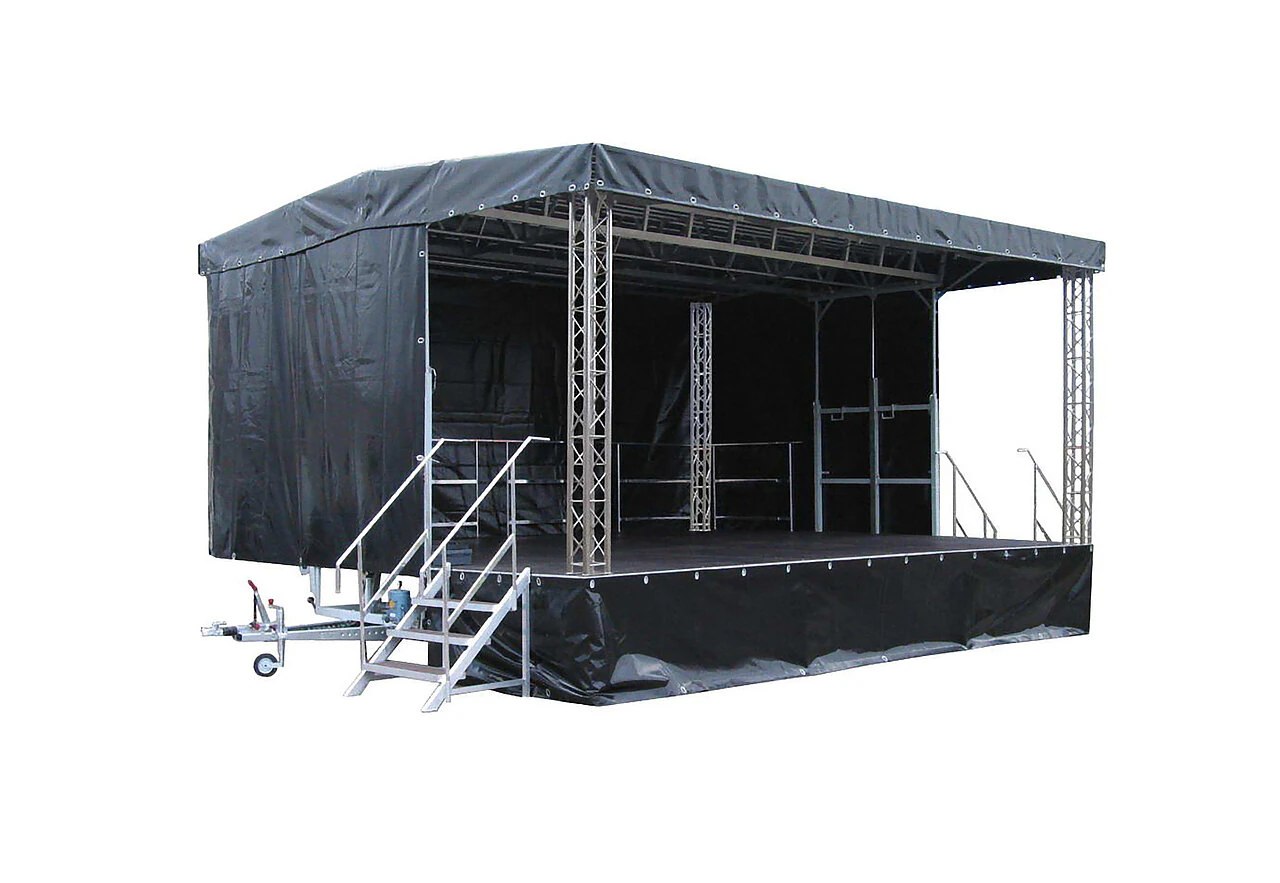

Supertruck
Stage Trailer
The Supertruck is a complete open-air stage on a trailer: a 7.5 × 6 m stage area, roof, tarpaulins, railings, stairs and a lockable equipment compartment. Park the trailer, raise the roof hydraulically, fit the railings and stairs – after 30 minutes the show can start. Taking it down is just as fast.
- Stage area7.5 × 6 m (45 m²)
- Set-up1 person · 30 min
- Roofraised hydraulically
- Accessorieson board the trailer
Benefits
No stage-building crew and still a covered stage, on time
One person is enough
Set-up and take-down are designed for one person. No crew call early in the morning, no long take-down after midnight.
30 minutes until the show can start
Drive there, park, set up: after half an hour the complete stage is ready. Taking it down takes just as long.
Roof and tarpaulins as standard
A complete set of tarpaulins protects the stage, the performers and the equipment from rain and sun.
Everything on board

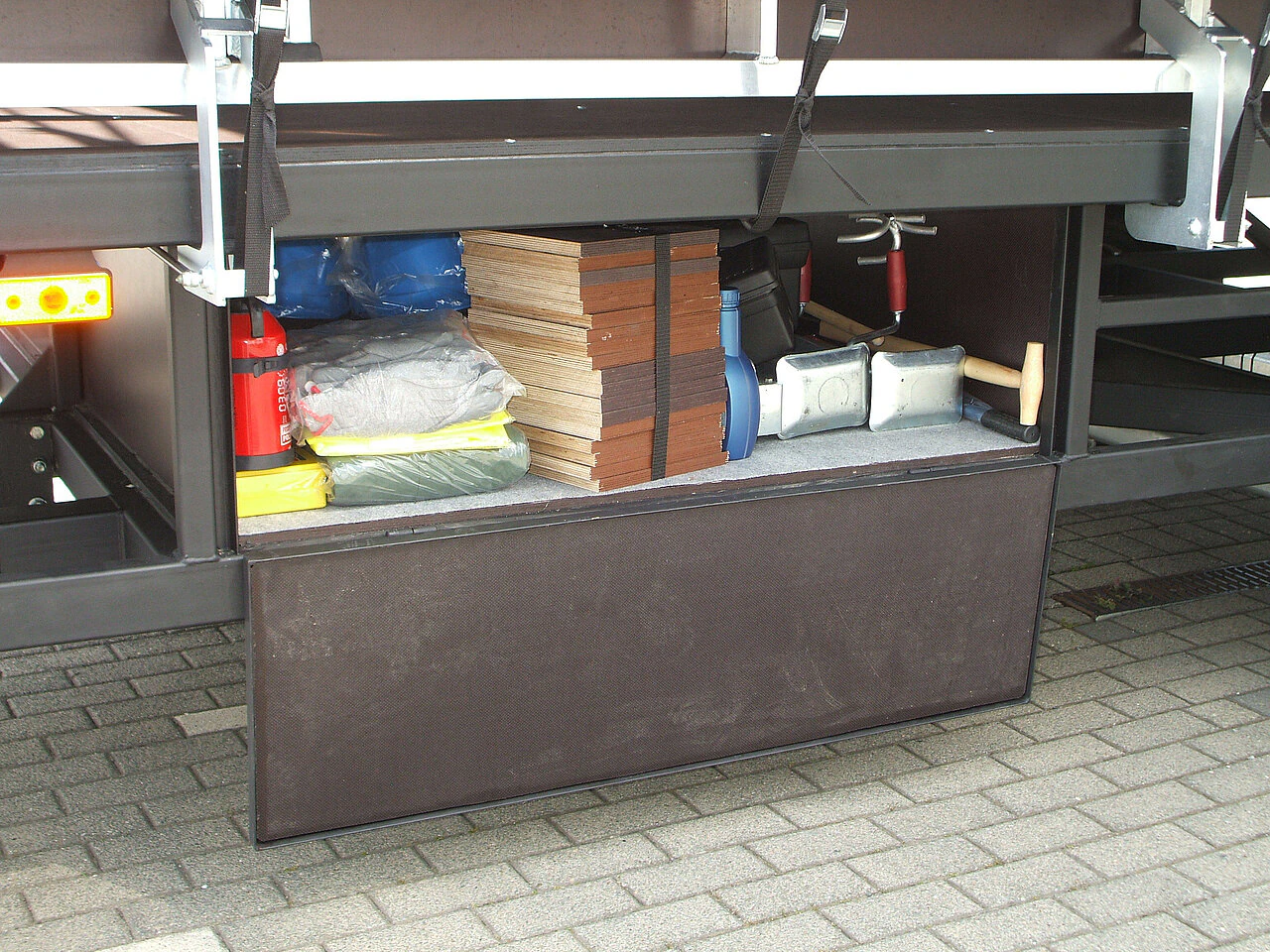

For the journey, the trailer is fully closed. Supports and railings hang on the roof beams, and the safety equipment is in the lockable equipment compartment.
Hydraulics instead of muscle
The roof is raised hydraulically and the stage floor is levelled. Nobody has to lift trusses overhead.

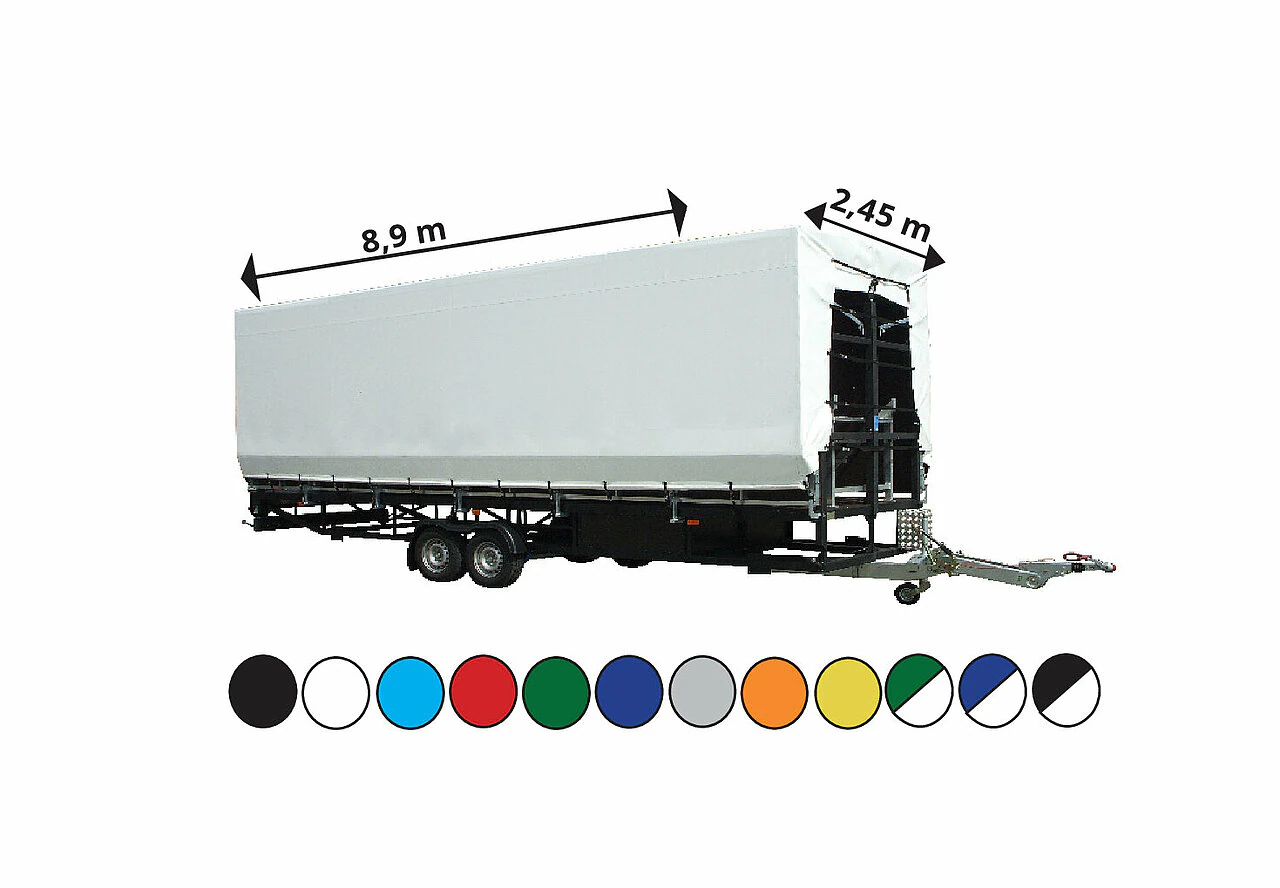

Your colour, your sound
The tarpaulin is available in many colours. Two PA wings for the sound system are available as an option.
How it works
From trailer to stage in four steps
Park
Park the trailer at the venue. It is towed with a jaw or ball coupling and braked with an ATC system.
Level
Set the supports and level the stage floor.
Raise the roof
The roof is raised hydraulically, and the stage area opens to 7.5 × 6 m.
Equip
Fit the railings, place the stairs at the front or side, close the tarpaulins – the stage is ready to use.
Technical data
Supertruck base model at a glance
Stage and trailer
- Stage area
- 7.5 × 6 m (45 m²)
- Transport size (L × W)
- 8.9 × 2.45 m
- Construction
- steel
- Roof
- raised hydraulically
- Brakes
- with ATC system
- Coupling
- jaw or ball coupling
- Set-up and take-down
- 30 minutes each, 1 person
Standard equipment
- Tarpaulins
- complete set of PVC tarpaulins, flame-retardant, in many colours
- Stairs
- with handrail, placed at the front or side
- Roof beams
- 4 additional 4-point roof beams
- Railings
- at the sides and back
- Equipment compartment
- lockable, with safety equipment
- Option
- 2 PA wings
The Supertruck is available in different versions and sizes. We confirm weights, heights and permitted loads for your version in writing.
Where it is used
Where the Supertruck stands Wherever the party is today – and somewhere else tomorrow
Town and club festivals
The stage arrives with the trailer and leaves again in the evening.
Open-air services
A covered space for altar, choir and equipment – even when the weather is uncertain.
Concerts
With optional PA wings for the sound system – stage, roof and equipment from one trailer.
Together with the grandstand trailer
The Applause grandstand trailer adds 124 covered seats – set up by one person in 10 minutes.
Learn more

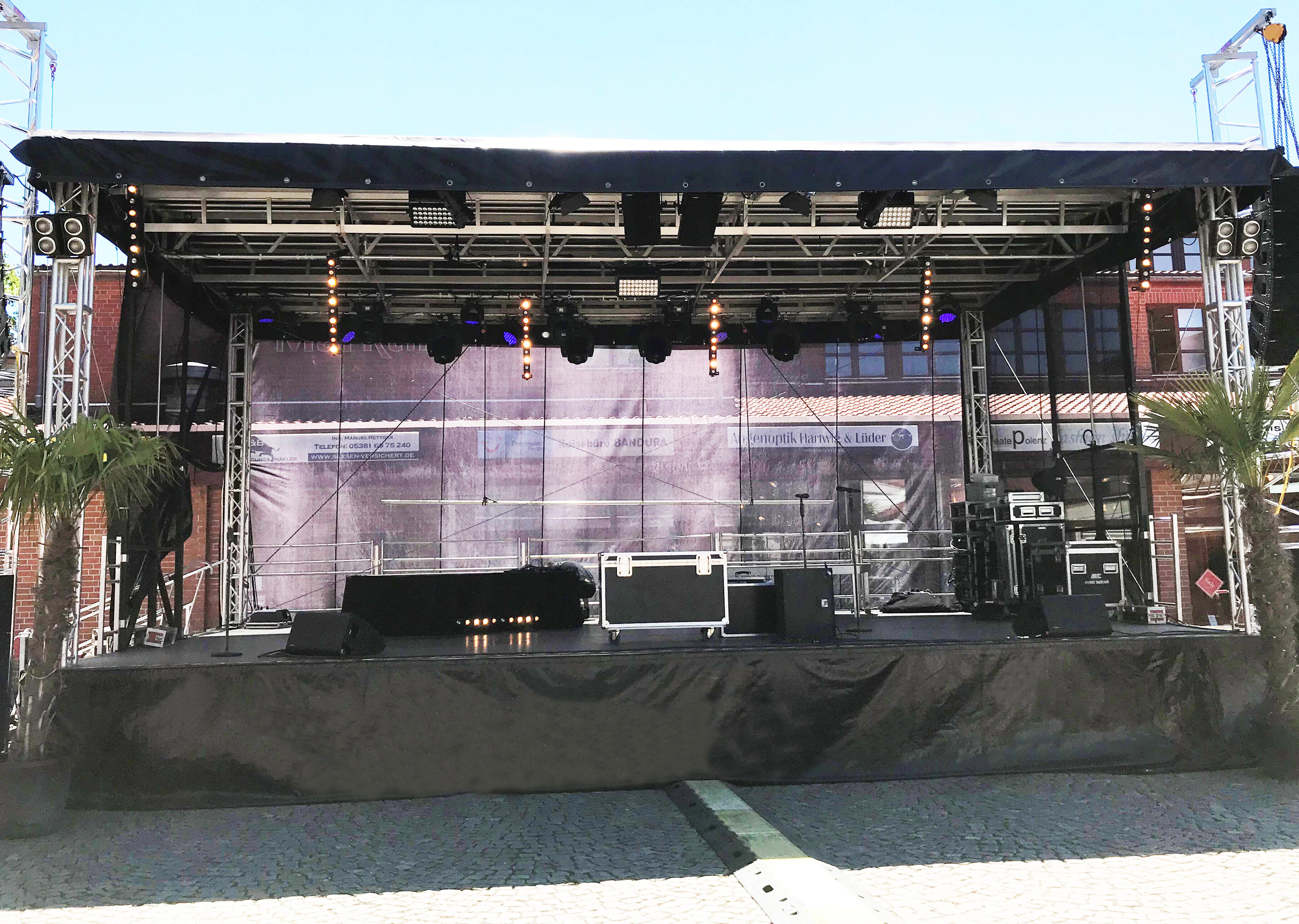

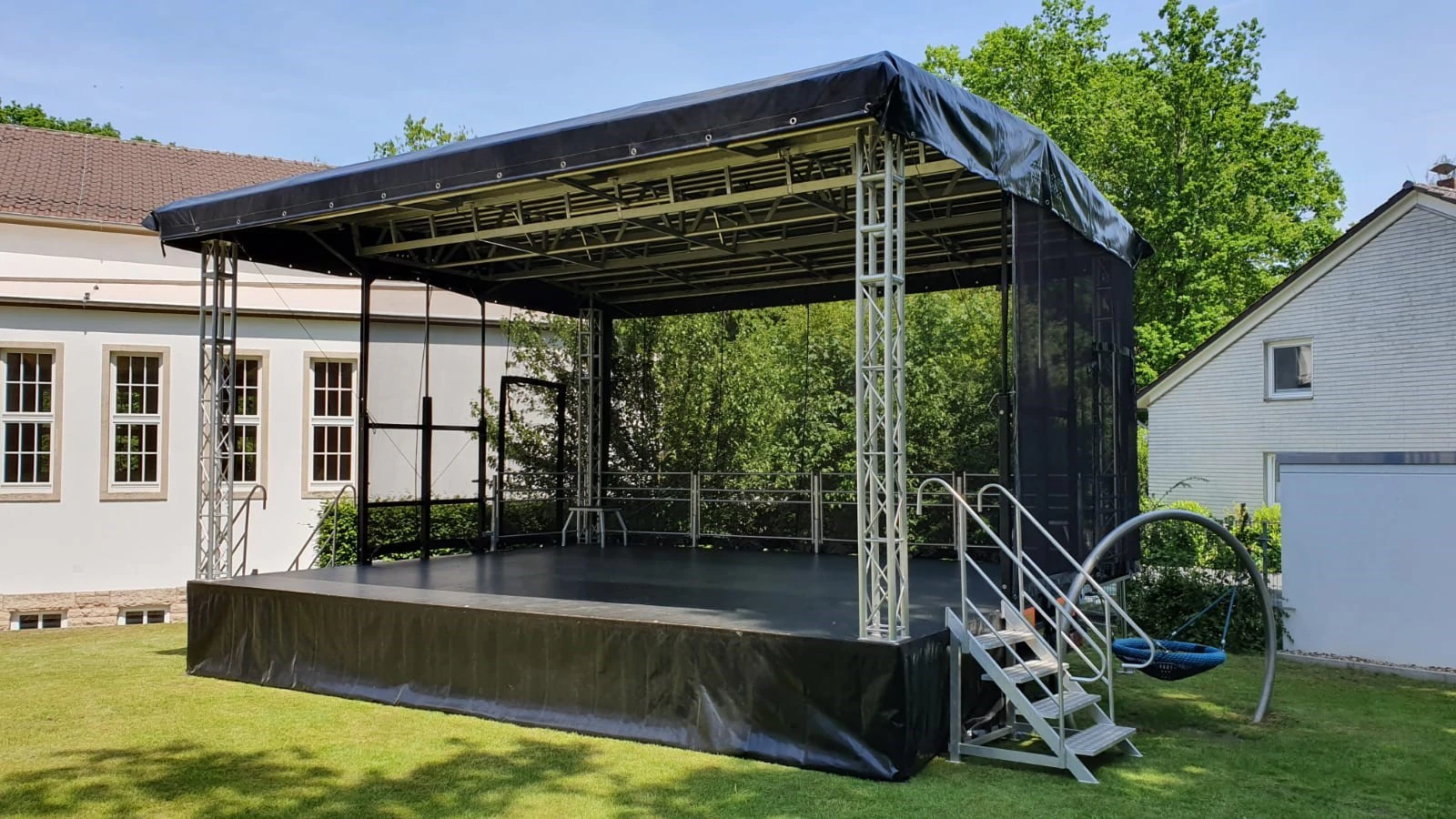

In use
With round roof, ramp, PA wings The Supertruck in use
Downloads Brochure and data sheets
Datasheets
For planners
Questions
Crew, equipment, weather, towing Questions about the stage trailer
Can one person really set it up?
Yes. The Supertruck is built so that one person can set it up or take it down in 30 minutes. A hydraulic system raises the roof, and the supports and railings are stored on the trailer.
What is included?
A complete set of tarpaulins, stairs with handrail, four additional 4-point roof beams, railings at the sides and back, and a lockable equipment compartment with safety equipment. Two PA wings are optional.
How does the stage cope with wind and weather?
The roof and tarpaulins protect the stage and equipment from rain and sun. We confirm the permitted limits for wind and use in writing with the quote for your version.
Are there other sizes?
Yes, the Supertruck is available in different versions and sizes. The data on this page describe the base model.
What do we need to tow it?
The trailer has a jaw or ball coupling and brakes with an ATC system. We agree the towing vehicle and driving licence with you for the version you choose and the rules in your country.
Next festival, new location? The stage simply travels with you
Tell us what you will use the stage for and how often – we prepare a quote for the right version.
Supertruck stage trailer
7.5 × 6 m (45 m²)7.5 × 6 m (45 m²) · 1 person · 30 min
