Stage platforms
Stage platforms Any stage height – plug in, fold out or press a button
From 2 × 1 m stage platforms, also called stage podiums, you build stages, grandstands, choir risers and catwalks in any shape. How fast the height is set, and how many hands it takes, depends on the build principle underneath: plug-in legs, frames, scissors or a motor. Every series is designed for a distributed load of 750 kg/m² and tested with a 1.7 safety factor.
- 750 kg/m², tested with a 1.7 safety factor
- Around one million platforms in use worldwide
- Core series TÜV GS-tested
- Spare parts even for platforms from the 1990s
Your changeover today
Monday sport, Friday concert: Every changeover costs hours and helpers
If your hall serves more than one purpose, you know this week well.
Carried up from the basement
Stage sets go back and forth several times a week. Each time it takes people, time and healthy backs.
Every event needs a different height
40 cm for the school play, 80 cm for the concert, one step for the lectern. Without the right mechanism, every set-up starts from zero.
Loose parts, little storage
Legs, clamps and decks must be sorted, counted and stored somewhere. Ideally flat, and without extra boxes for small parts.
The responsibility stays with you
Council meeting or graduation ball: the stage must carry the load, must not wobble and must pass the inspector's check.
More helpers do not solve this. The mechanism under the deck decides how many hands your changeover needs.
How it works
Four principles, one grid Choose how your stage reaches its height
All BÜTEC platforms share the 2 × 1 m base size, the load rating and one accessory range. Only the way up is different – and with it the effort per changeover.
Plug-in leg: any height, any shape
Push the legs into the corners and clamp them by handwheel, without tools. Fixed hooks hold the next platform during set-up. The classic for mobile stages and grandstands.
Frame: long spans
Frames up to 6 m long bridge rows of seats and aisles. The Master profile is 166 mm high – exactly one step of classic theatre rake.
Scissor: the legs are built in
The scissor folds out of the platform and locks at 20, 40, 60, 80 or 100 cm. No loose legs, and the platforms stack flat.
Servo Stage: flush in the floor, no power
Installed permanently in a shallow floor pit. Gas springs carry part of the weight, and the platform is raised from above with a key.
Motor: stage sets at the push of a button
SoloDrive One moves steplessly to any height, alone or in groups. Stage layouts can be saved and recalled.
Series comparison
Which series fits? All platforms by height, load and use
Rule of thumb: mobile and free in height and shape → plug-in leg. Long spans → frame. Changing heights without loose parts → scissor. Permanently in the hall → Servo Stage or motor.
| Series | Build principle | Height range | Distributed load | Typical use |
|---|---|---|---|---|
| Standard | Plug-in leg, legs clamped by handwheel | any height via leg length, up to 1.2 m without bracing | 750 kg/m², TÜV GS | mobile stages, grandstands, choir risers |
| Standard Plus | Plug-in leg, 93 mm frame | as Standard | 750 kg/m², TÜV GS | stages with parquet, laminate, linoleum, needle felt |
| Compact | Plug-in leg + compact corner with M8/M10 threads | any height via leg length, up to 1.2 m without bracing | 750 kg/m², TÜV GS | large grandstands, rental stages, railings without drilling |
| Eco | Plug-in leg, groove inside and outside | any height via leg length, up to 1.2 m without bracing | 750 kg/m², TÜV GS | stock mixed with other brands' platforms |
| Flexible | Plug-in leg, all-round outer groove | from approx. 8 cm, up to 1.0 m without bracing | 750 kg/m² | very low stages, parquet, acrylic glass, outdoors |
| Master | Plug-in leg / frame, 166 mm profile | any height via leg length, frames up to 6 × 1 m | from 750 kg/m², higher loads per data sheet | tall stages, spans over seating, theatre rake |
| Giga | Frame, deck locked on separately | via legs, frames 1 to 6 m long | 750 kg/m² | theatre construction, raised seating rows, storage space |
| Scissor 100 | Y-scissor, adjusted from below | 20, 40, 60, 80, 100 cm | 750 kg/m², TÜV GS | stage extensions, halls, sports venues |
| Scissor 1000 | Y-scissor, Bowden cable from the side | 20, 40, 60, 80, 100 cm | 750 kg/m², TÜV GS | frequent height changes, churches, stage cabinets |
| Servo Stage | Double scissor + gas springs, fixed installation | flush with the floor, up to 100 cm | 750 kg/m² | civic halls, community centres, congress halls |
| Servo Stage 1500 | As Servo Stage, compact corner included | flush with the floor, up to 150 cm | 750 kg/m² | stepped and retractable stages and seating |
| SoloDrive One | Motor, 4 spiral lifts, fixed installation | stepless from floor level | 750 kg/m² static | adjustable hall floor, lift for a grand piano |
| Rolltec | Chassis under plug-in leg platforms | various heights | up to 750 kg/m² | move whole stages and store platforms at the same time |
All values per 2 × 1 m unit. Heights without bracing as stated in the data sheets; above 100 cm, leg clamps are added, and above 150 cm the structural calculations for the build apply. Point loads are calculated separately.
Not sure what fits? Compare every model with filters in the catalogue – or let the product finder suggest a suitable system.
Product ranges
All platform series With data, instructions and accessories
Plug-in leg platformsStage platforms with plug-in legs: clamp the legs by handwheel without tools and build any height or shape from 2 × 1 m units.
Scissor platformsPlatforms with a built-in scissor frame instead of loose legs: lock the height in steps – mobile or installed flush with the floor.
Frame system platformsFrame platforms Master and Giga: frames up to 6 × 1 m for spans over seating, tall stages and seating rows at theatre rake.

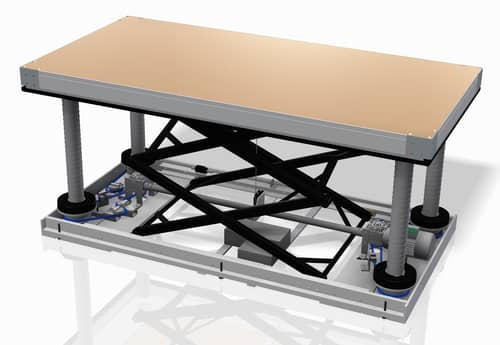

Motor platformsMotor platforms move to any height by button, touchscreen or tablet – installed flush with the floor, stage sets can be saved.
Rolltec stageChassis that puts plug-in leg platforms on wheels: move whole stages including the cabinet; doubles as storage for 9 platforms.

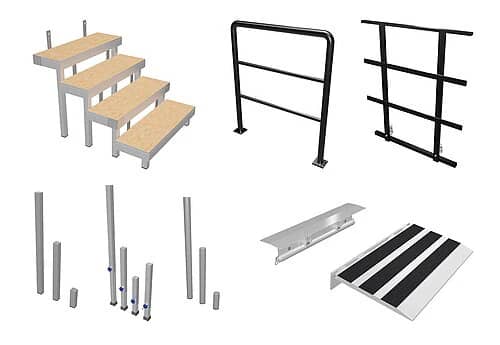

Podium AccessoriesRailings, stairs, legs, castors and skirting for BÜTEC platforms.
Custom platform constructionsPlatforms in custom sizes, shapes or finishes – designed by our own CAD department, made on CNC machines up to 6 m.
Since 1979
Around one million platforms in use in halls, theatres and studios
- since then, stage platforms from Mettmann, Germany
- 1979
- BÜTEC platforms in use worldwide
- ≈ 1 million
- distributed load, tested with a 1.7 safety factor
- 750 kg/m²
- of our own production space in Mettmann
- > 10,000 m²
- Verti Music HallBerlinRollable stage area of 18 × 12 m, height-adjustable from 1.00 to 1.50 m
- VolkshausJena110 m² of SoloDrive One and 50 m² of Servo Stage instead of stage sets carried up from the basement
- Teatro RealMadridOrchestra and choir levels built from BÜTEC platforms
- Stage on a hillsideDelphi120 m² for around 300 spectators on rock and clay, Standard platforms on telescopic legs, built on site in two days
- OlympiahalleInnsbruckMobile stage on the ice rink
Downloads
Brochures and manuals Every series in detail, to read and pass on
Questions
Before you decide What venue managers ask us most often
Which platform series suits our hall?
That depends on how often you change the set-up and where the stage stays between events. If it is set up and taken down, and should be free in shape and height: plug-in leg platforms. If heights change often and no loose legs should sit in storage: scissor platforms. If nobody should carry the stage at all: Servo Stage or SoloDrive One, installed permanently and flush with the floor. The series comparison above shows all series side by side.
How much load does a platform carry?
All series are designed for a uniformly distributed load of 750 kg/m² and tested with a 1.7 safety factor. Point loads, for example from piano castors or truss supports, are calculated separately.
Do we need an inspection book or structural calculations for our stage?
That depends on size, height, use and the building regulations in your country. For complete installations, grandstands and set-ups outside our assembly instructions, we supply the matching structural calculations, construction approval or TÜV inspection book for temporary structures.
Will new platforms work with the ones we already have?
Compact is fully compatible with the Standard series. The Eco profile connects to almost any other brand's stage without special clamps. And for older BÜTEC platforms we supply spare parts, including leg corners made before 1995.
How much storage space do the platforms need?
A Standard plug-in leg platform is around 9.5 cm high when stacked, and legs and clamps fit inside two stacked platforms. One transport trolley holds up to 18 platforms. Servo Stage and SoloDrive One need no storage at all: they stay flush in the floor.
Are there other sizes and shapes than 2 × 1 m?
Yes. Every series is available in custom sizes, custom shapes (round, angled, triangular) and with the surface you choose. Our design department plans them in CAD, and we build them in our own factory in Mettmann.
Your hall, your events We find the series that shortens your changeover
Send us your room dimensions, the stage heights you need and how often you change the set-up. We recommend the right series and accessories and prepare a quote. If you already have a quote from another supplier, we review it in our Quote Check.
