Camera platforms A clear view for the camera, even above the seat rows
The camera must stand in the right place so that viewers at home see everything. BÜTEC builds camera platforms from its modular platform systems: adjusted to the grandstand with telescopic legs, built across rows of seats, with railings that fold down for panning. Permanent in the arena, or temporary for one handball, volleyball, table tennis or basketball match.
- Loadup to 750 kg/m²
- Buildmodular from BÜTEC platforms
- Railingfolding or reduced
- Heightadjusted with telescopic legs
Benefits
Camera and director in the right place What a BÜTEC camera platform does
Above the seat rows

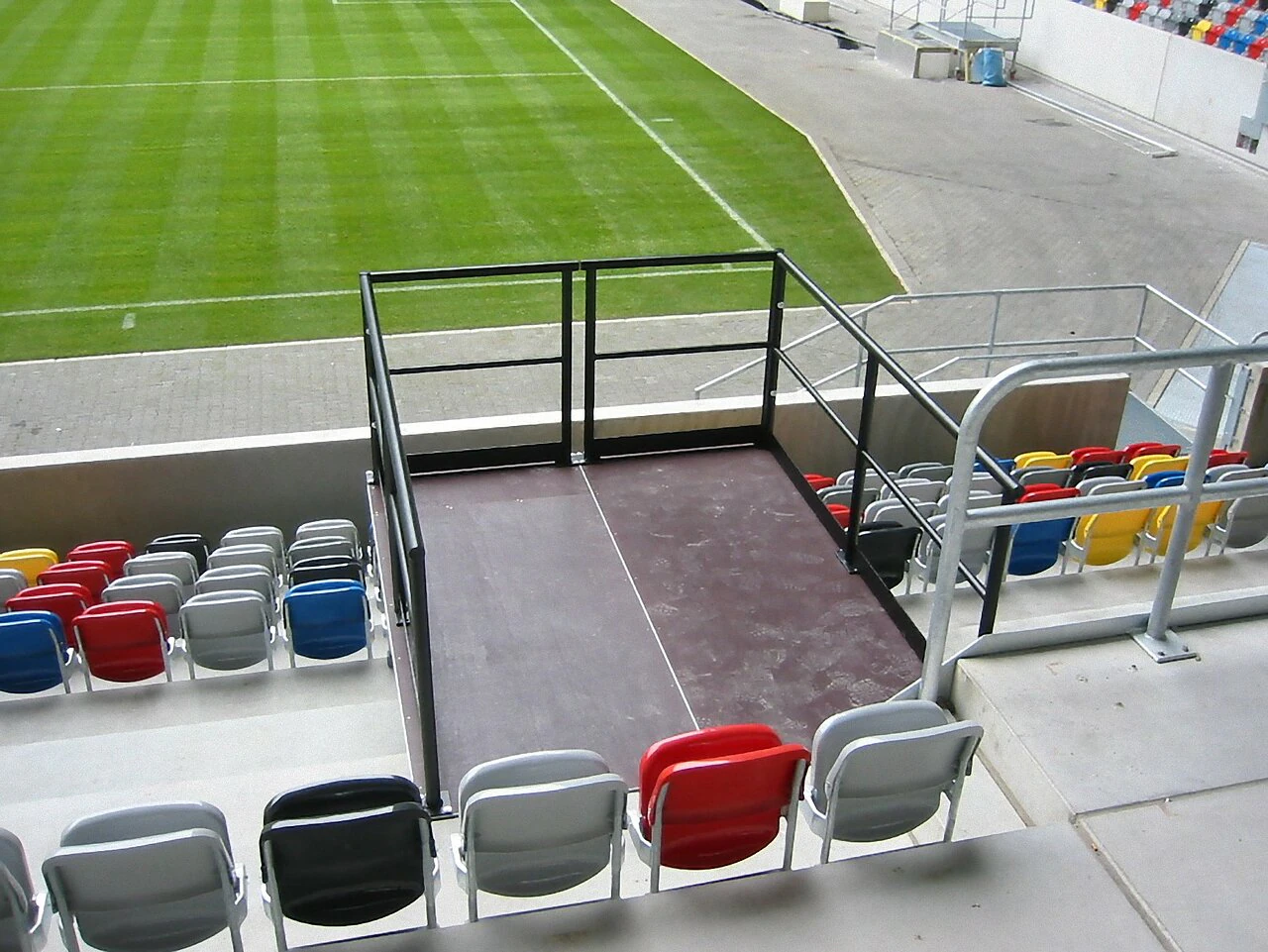

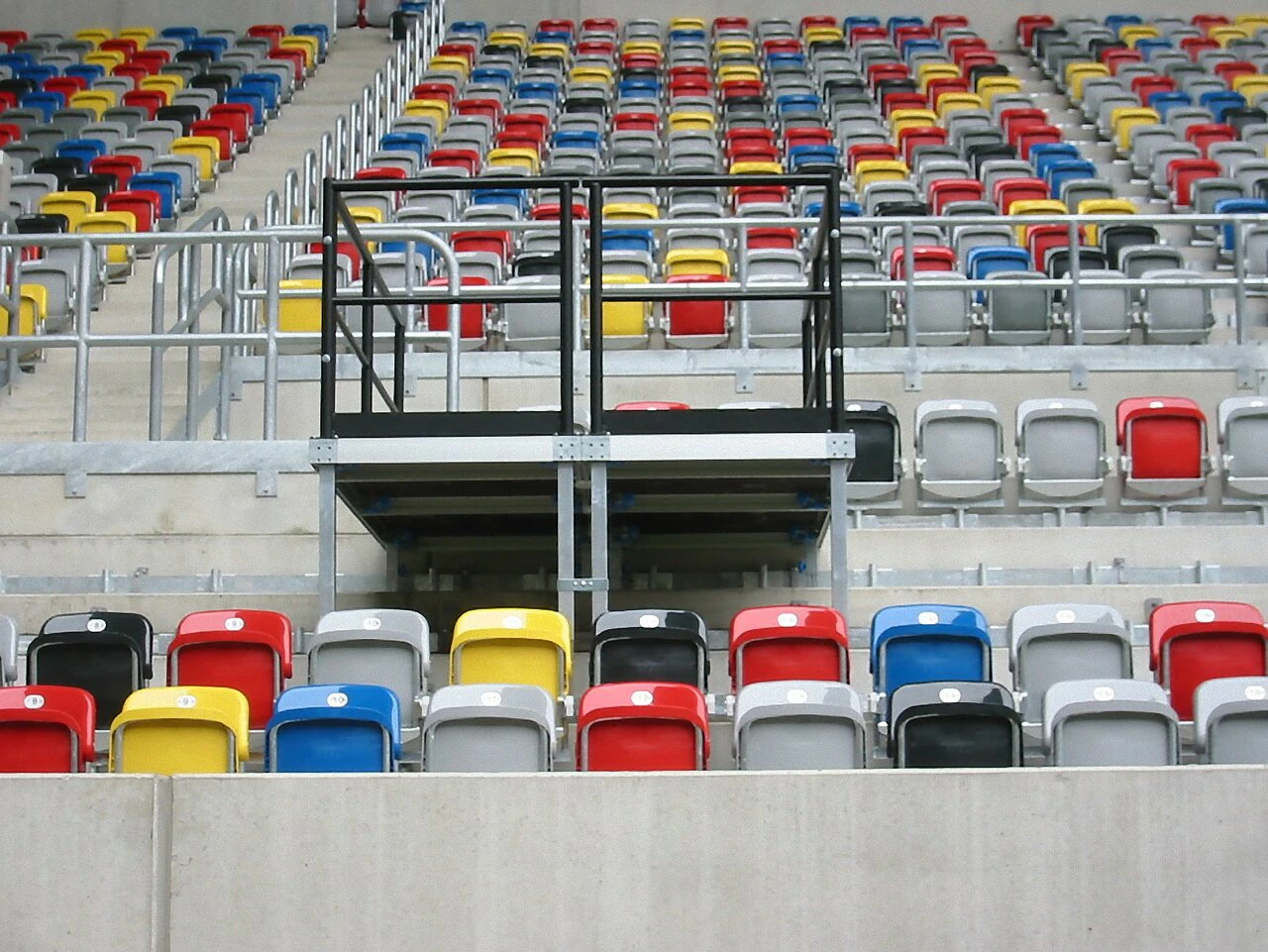

A platform built across rows of seats puts the camera above the audience, with a clear view of the field and the stands.
Free to pan
Railings fold down or are built lower. Special railings have a top rail that can be removed or folded down.
Carries camera and crew
Rated up to 750 kg/m². The BÜTEC platform systems are TÜV-certified.
Fits the grandstand
Shape and size follow the conditions on site; telescopic legs even out the height.
Also for one match
Quickly installed and taken down again when the broadcast is over.
Room for the director
The director, who picks the right shot at the right moment, also gets a place with an overview.
Technical data
Camera platforms Data at a glance
- Load
- up to 750 kg/m²
- System
- modular BÜTEC aluminium platforms (Compact platforms)
- Height
- adjusted with plug-in and telescopic legs
- Shape
- to suit the site; can be built over seat rows; can be integrated into grandstands
- Railings
- fold down or lower; special railings with removable or folding top rail
- Surface
- e.g. film-faced plywood
- Testing
- TÜV-certified platform systems
In use
From arena to sports hall Where BÜTEC platforms carry the camera
- load rating of the platform systems
- 750 kg/m²
- since then, stage platforms from Mettmann, Germany
- 1979
- Multi-purpose arenas in Düsseldorf, Berlin and BalingenCamera platforms and platform systems from BÜTEC
- TV broadcasts from sports hallsHandball, volleyball, table tennis, basketball – also temporary
References

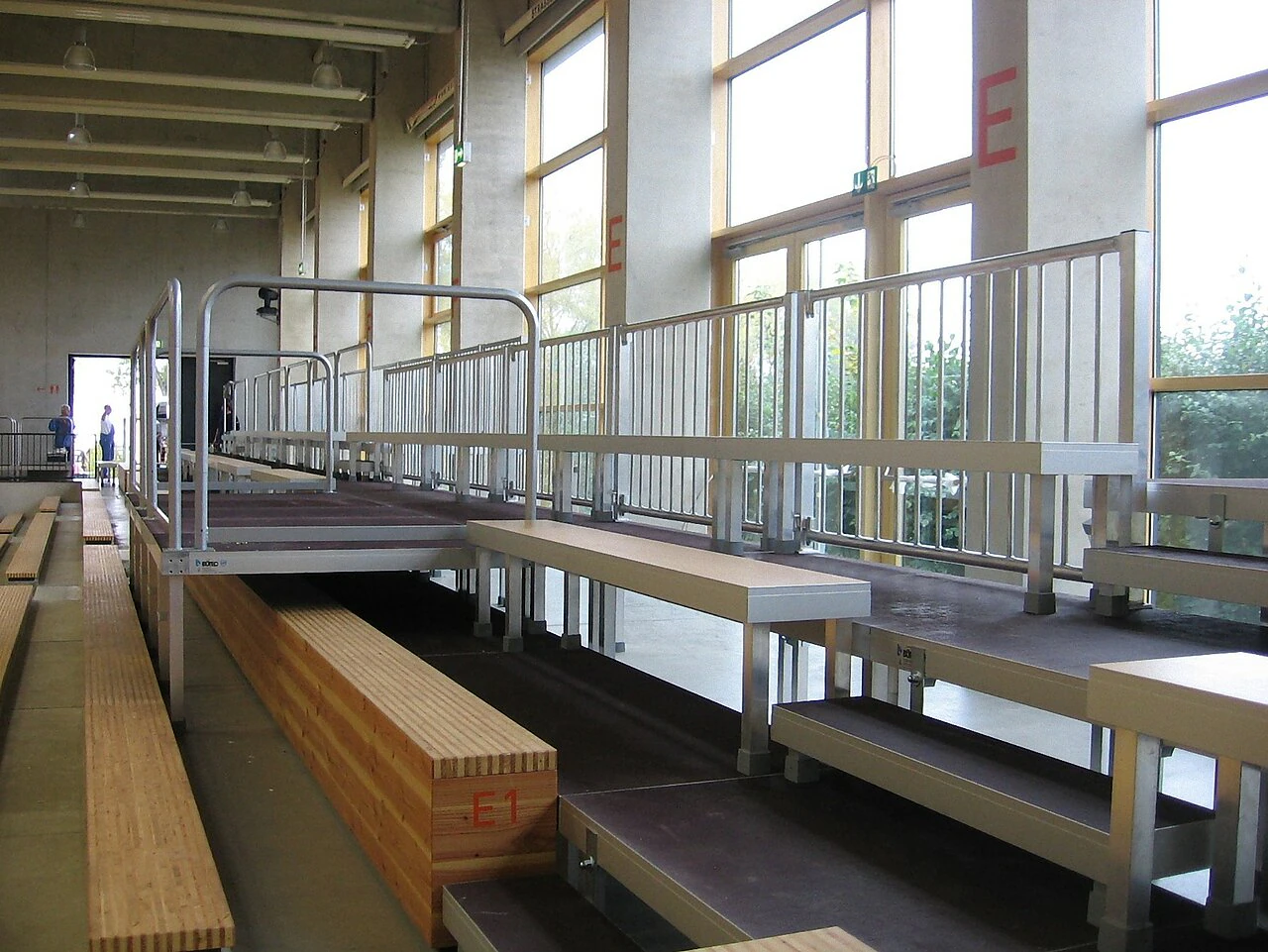

Pictures Camera platforms in arenas and halls
Accessories
Matching accessories Railings, plug-in and telescopic legs
Legs & feet1
Plug-in & telescopic legs
Plug-in legs: 40, 50, 60 mm, round Ø 48 mm
Systems1
Compact plug-in leg platform
Corner: M8/M10 threads
Comparison
Comparable systems The alternatives side by side
Same job, different focus – the key specs next to each other.
Camera platforms
This page- Build
- modular from BÜTEC platforms
- Load
- up to 750 kg/m²
- Railing
- folding or reduced
- Build
- modular on Compact platforms
- Load
- –
- Railing
- –
Downloads Documents for Camera platforms
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions
Questions about camera platforms
Can we build a platform for just one broadcast?
Yes. Camera platforms are quickly installed and taken down again, which suits temporary broadcasts from sports halls.
Can it be built over seat rows?
Yes. Built across the rows, the platform puts the camera above the audience, and the view of the field and the stands stays clear.
What load does the platform carry?
Up to 750 kg/m². The platform systems are TÜV-certified.
How does the platform fit a stepped grandstand?
With telescopic legs that bring each platform corner to the right height. We plan the shape and size to suit the conditions on site.
Where should the camera stand? We plan the platform for your grandstand
Send us a grandstand plan, photos or a sketch of the position. You receive a proposal and a quote.
