Sports hall & arena Several groups, one hall, divided in a few minutes
Dividing curtains split the sports hall so school classes and clubs can train at the same time. Ball safety nets protect spectators, glass and equipment. Camera platforms and commentary booths give television its place, and stacking chairs and folding tables turn the hall into an auditorium. All from the manufacturer that also builds grandstands and stages.
- Dividing curtains to DIN 18032-4
- Flame-retardant B1 (DIN 4102-1)
- Camera platforms for 750 kg/m²
- Annual inspection and maintenance
The situation
When the hall has to do more Four situations every venue manager knows
Too many groups, one hall
Without a divider, one class trains and the others wait. Or everyone disturbs everyone else.
Balls fly into the stands
Spectators, windows and equipment are in the path of balls – and, in an ice rink, of pucks.
Television is coming
Camera, director and commentators need a place with a clear view, often for just one match.
After the match, the party
Chairs and tables must be set out quickly and then disappear into little storage space.
For each of these situations BÜTEC has a product that fits into the hall and then gives the space back.
How it works
Parked overhead, set up fast What keeps the hall free when nobody needs it
Parked under the roof
Dividing curtains and electrically gathered ball nets move up when the whole hall is needed. A safety catch and safety limit switches are standard.
Built from the platform system
Camera platforms and commentary booths are made from BÜTEC stage platforms: TÜV-certified, rated up to 750 kg/m², temporary or permanent.
Stackable and on wheels
Stacking chairs and folding tables come with matching trolleys on request. Setting out is quick, and storage takes little space.
Inspected and maintained
Dividing curtains count as suspended loads above people and must be inspected regularly. BÜTEC offers inspection and maintenance.
Which product?
What do you need? The equipment sorted by task
| Your task | Product | In short |
|---|---|---|
| Divide the hall for several groups | Dividing curtains | DIN 18032-4, B1, lowered in a few minutes |
| Protect spectators, glass and equipment | Ball safety nets | Nylon or polypropylene, as a curtain, gathered or fixed |
| Position camera and director | Camera platforms | 750 kg/m², also over seat rows, also temporary |
| Seat commentators and press | Press & commentary booths | Screened off, clear view, monitor set in at an angle |
| Seat the hall | Stacking chairs | Pro Comfort for indoor use, with row connectors and trolley |
| Tables for banquet and meeting | Folding tables | Stackable, 65 to 80 × 120 to 200 cm, six finishes |
Not sure what fits? Compare every model with filters in the catalogue – or let the product finder suggest a suitable system.
Products
All products for sports hall and auditorium Data, versions and examples
Dividing curtainsDivide the sports hall so groups can train in parallel.
Ball safety netsProtect spectators, glass and equipment from balls and pucks.
Camera platformsCamera and director in the right spot, also above seat rows.
Press & commentary boothsScreened-off seats with a clear view of the field.
Stacking chairsPro Comfort for halls and auditoriums, with row connectors.

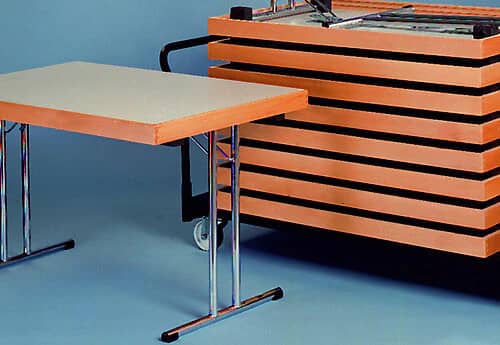

Folding tablesStackable tables in 27 sizes and six finishes.
In use
From school sports hall to arena Equipment that meets standards and inspections
- dividing curtains for sports halls
- DIN 18032-4
- dividing curtains flame-retardant to DIN 4102-1
- B1
- load rating of the camera platforms
- 750 kg/m²
- since then, equipment from Mettmann, Germany
- 1979
- School and club sports hallsDividing curtains for parallel school sport and club training
- Multi-purpose arenas in Düsseldorf, Berlin and BalingenCamera platforms and platform systems from BÜTEC
- Ice rinksBall safety nets that keep the puck away from the stands
- Event hallsFolding tables and stacking chairs for banquets and parties
Questions
What venue managers ask about sports facility equipment
Does a dividing curtain need an annual inspection?
Dividing curtains count as "suspended loads above people". In Germany they must be inspected every year by a competent person; check the rules in your country. BÜTEC offers inspection and maintenance – see our maintenance service.
How much noise does a dividing curtain block?
In the laboratory, the standard material reduces sound by 22 dB, and a multi-layer fabric with a velour surface by up to 26 dB(A). In a real hall the value is clearly lower, because sound also travels around the curtain. Side sound locks improve it, and the material shortens the reverberation time.
Can camera platforms be built for just one match?
Yes. They are made from BÜTEC stage platforms and are also set up temporarily, for example for handball, volleyball, table tennis or basketball broadcasts.
Are the chairs suitable for outdoors?
The Pro Comfort stacking chair is made for indoor use. For grandstands there are dedicated grandstand chairs and seat shells.
Which hall do you want to equip? We plan dividing, protection and furniture
Tell us the hall dimensions, how the hall is used and what you need. You receive a proposal and a quote.
