Mobile stage cabinet A theatre stage for any hall, assembled at eye level
The stage cabinet turns platforms into a stage with main curtain, border, wings and back curtain. All beams, connectors and accessories hang on aluminium multi-function profiles. Your team fixes curtains and lights comfortably at eye level and then raises them by crank or motor. The stage is not tied to one place.
- Packageplatforms, frame, curtains, skirting
- Assemblyat eye level, then raised
- Raisingmanual or motorised
- Expansioncomplete or step by step
Benefits
Almost like a real theatre just without a permanent theatre hall
A stage cabinet does not replace a municipal theatre. But you can work almost as professionally with it, and the stage stands where you need it.
No work under the ceiling
Curtains, lights and sound are fixed to the combination profile at eye level and only then raised. Ladders and scaffolding stay in storage.
Not tied to one place
Sports hall, assembly hall, community hall or industrial hall: the cabinet is set up where the show takes place and taken down afterwards.
Grows with the budget
Buy it complete now or piece by piece. When your needs grow, you extend the cabinet with the money you have at the time.
A frame for your room
Various sizes, special sizes for niches, usable from both sides, with wall brackets or on ceiling beams.
Moved by a few people
Pre-assembled on the Rolltec stage, 4 to 6 people move 100 m² of stage including cabinet and curtain.
All from one factory
Platforms, profiles, tracks, fabrics and hoists come from BÜTEC and fit together, also when you extend later.
Assembly
Assembled on the floor A stage in three steps
BÜTEC stage platforms form the base. The cabinet is built on top.
Assemble at eye level
Parts and accessories are fitted to the combination profiles at a comfortable working height: curtains hung, lights fixed.
Set up where the show is
The cabinet stands on the platforms in the sports hall, assembly hall or auditorium. Skirting hides the substructure.
Raise
Accessories on the combination profiles, for example lighting and sound, are raised completely – by hand with cranks or by motor.
Construction
What belongs to the cabinet From the support post to the platform skirting
Structure
Support posts, main beams front and back, cross beams left and right, wing beams. All made from aluminium multi-function profiles; the small cabinet from 100/100 mm square profile.
Hoists
A hoist with winch and a curtain hoist move curtains and accessories, by hand or by motor.
Fabrics
Main curtain with side curtains and border, back curtain on its own track, wing curtains. More under curtains & stage fabrics.
Base and skirting
Plug-in leg or scissor platforms, covered with platform skirting. Optional wooden back wall, perforated sheet cladding, side stairs and scenery.

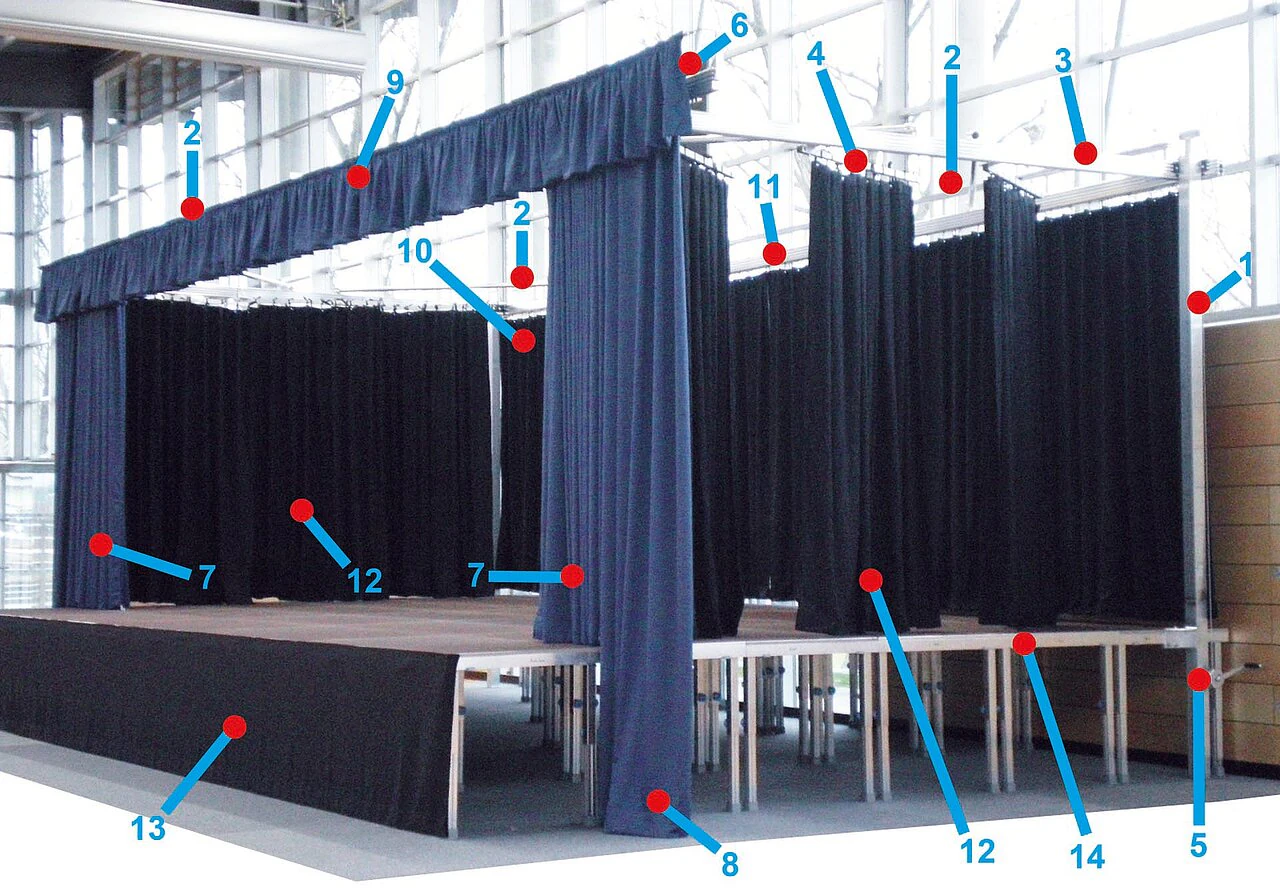

Detail view
The construction in detail Every part with its position number
Technical data
Mobile stage cabinet Data at a glance
- Profile
- aluminium multi-function profile (combination profile); small cabinet from 100/100 mm square profile
- Dimensions
- various sizes, special sizes possible
- Raising
- by hand with crank or winch, or by motor
- Fixing
- free-standing on platforms, with wall brackets or on ceiling beams
- Recommended base
- scissor platforms Scissor 100 and 1000; plug-in leg platforms Standard, Standard Plus, Compact, Eco, Flexible
- Fabrics
- flame-retardant to DIN 4102 B1, Trevira CS on request
- Set-up time
- ready for use within a few hours
- Accessories
- railings, stairs, wooden back wall, perforated sheet cladding, wing curtains, scenery
Video
Product video The stage cabinet in use
Projects
Five halls, five cabinets How differently they are used

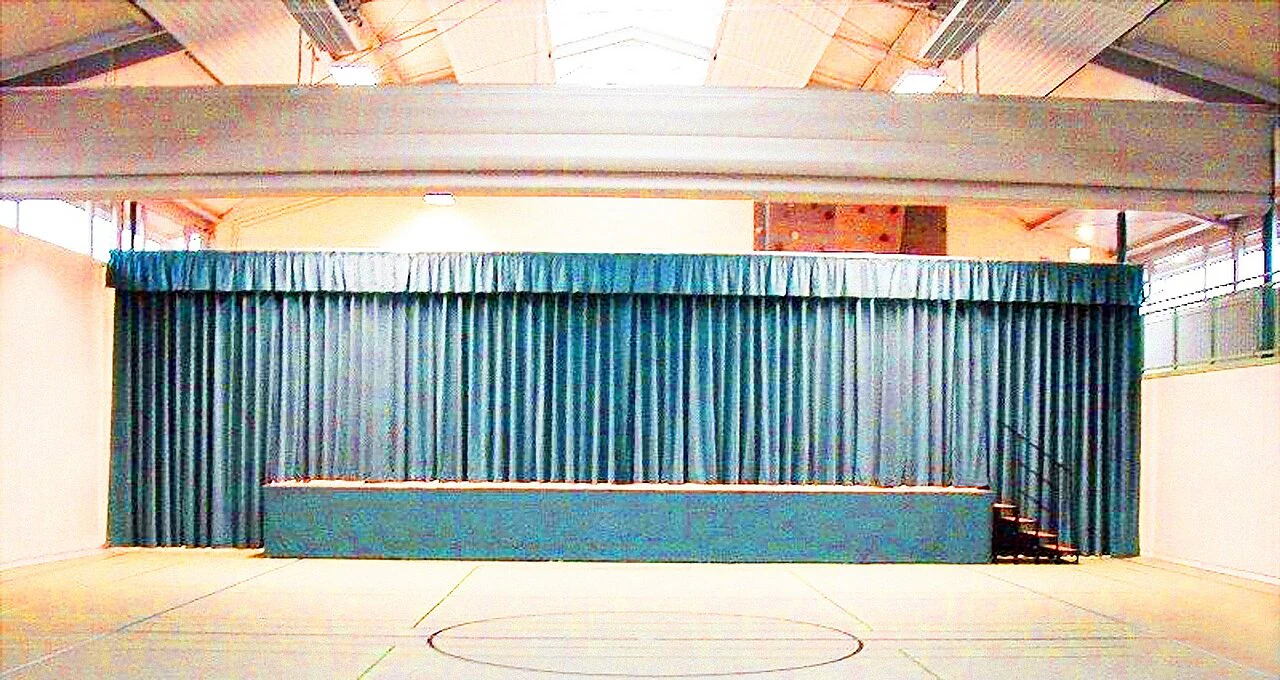

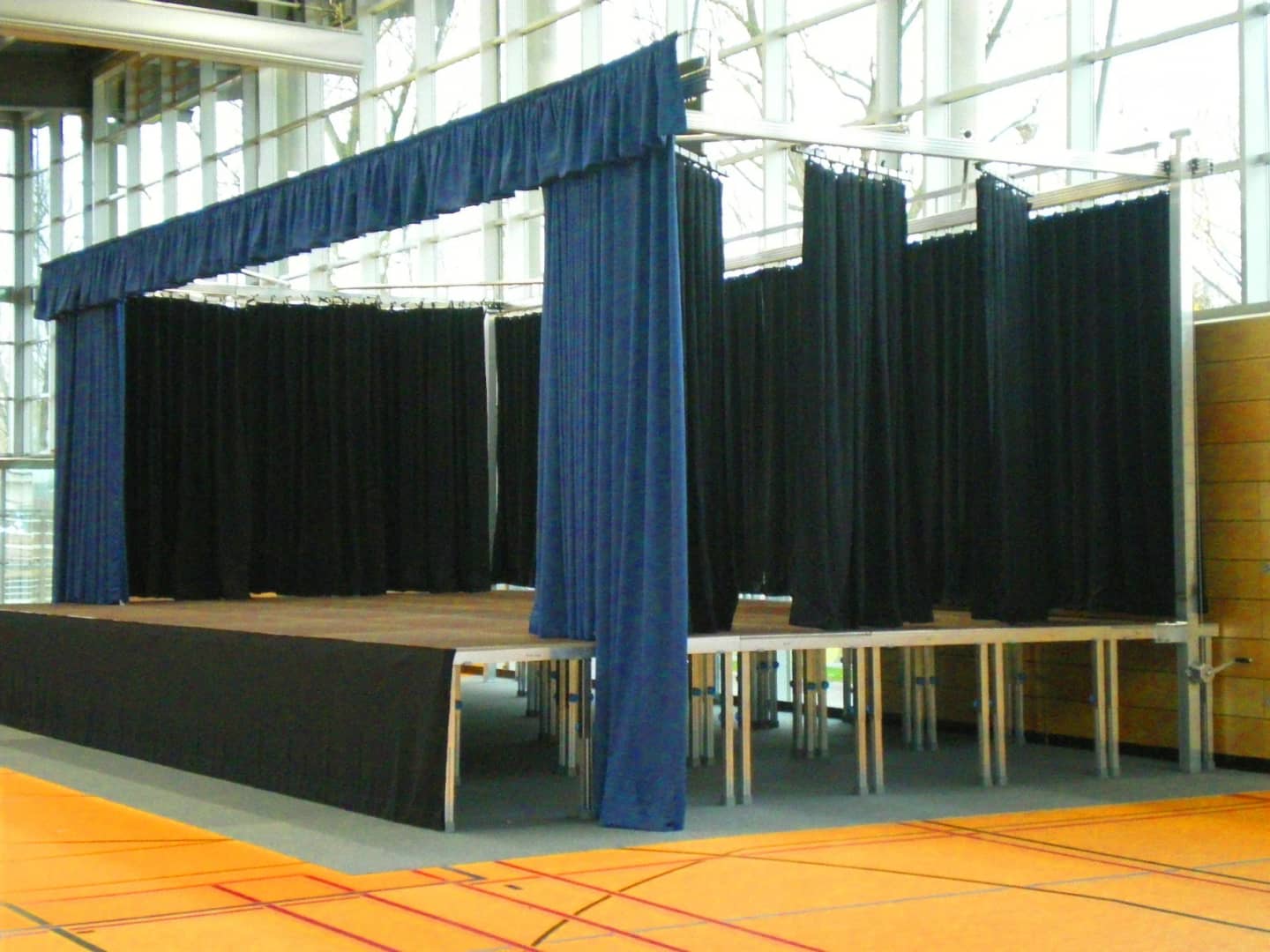

- Sports hallComplete cabinet with curtain hoist and forestage

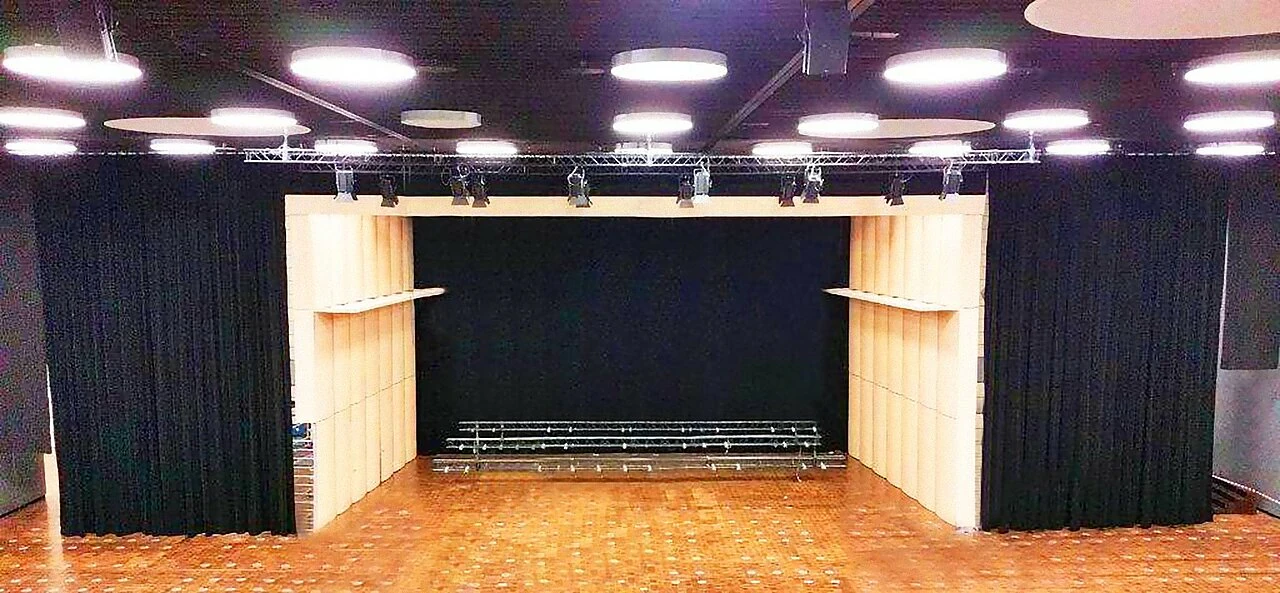

- School assembly hallCabinet with side curtains and Studio track on 4-point trusses

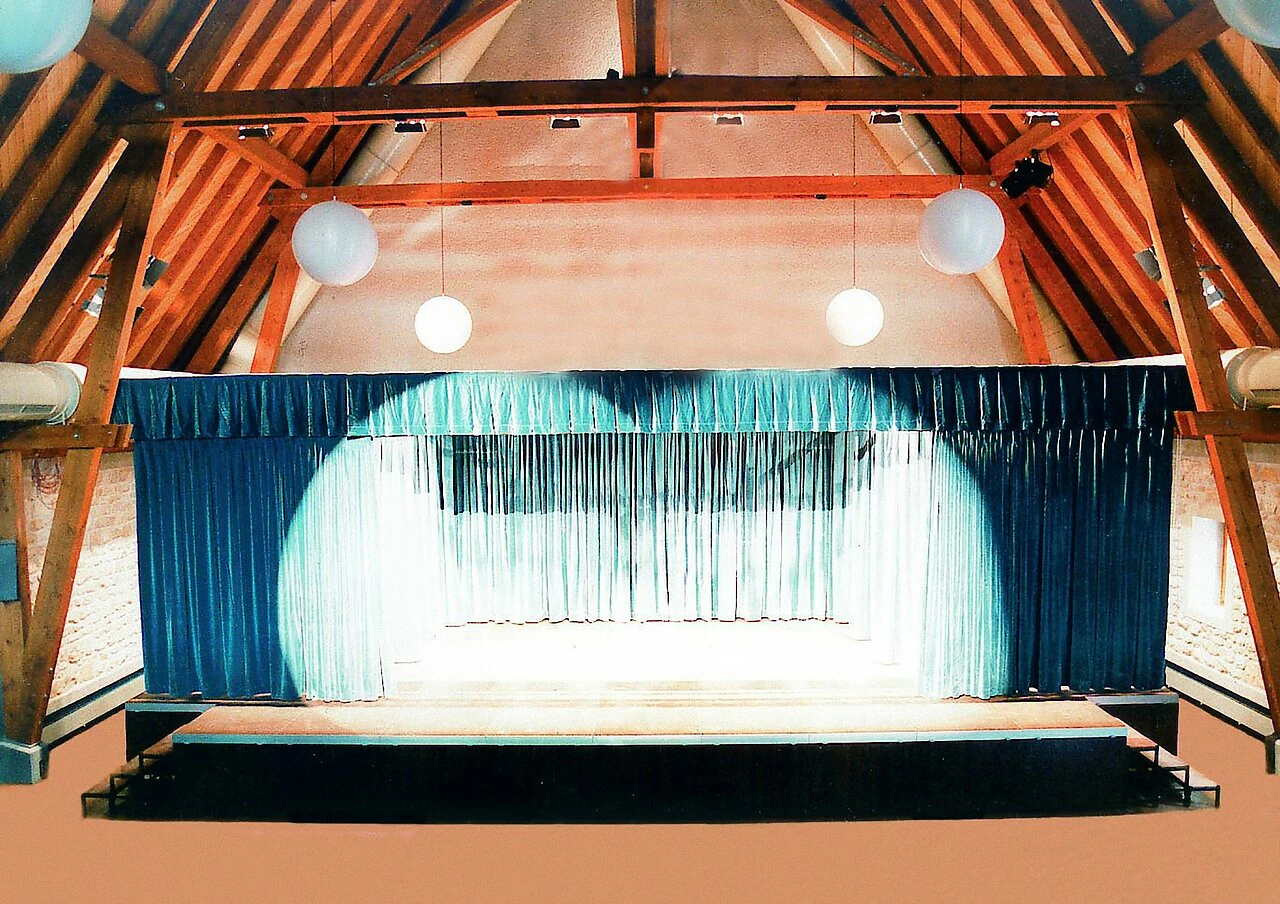

- Civic hall forumCabinet with a curtain system that moves all the way round
- Community hallSmall cabinet made from 100/100 mm square profile
- Industrial hallUsable from both sides, made to special sizes to fit the niche
References
In use Cabinets in halls, assembly halls and auditoriums
Accessories
Matching accessories Railings, stairs and more
Railings
Material: steel or aluminium
Surfaces & skirting1
Fabric cladding
Fabric: Trevira CS Dimout, 260 g/m²
Transport1
Rolltec stage
Stage load: up to 750 kg/m²
With Rolltec a small crew moves 100 m² of stage including cabinet
Lighting & mounting2
Hoist systems
Drive: manual or motorised
Lighting & sound
Offer: complete package or tailored
Trusses1
Curtains2
Curtains & stage fabrics
Fabrics: velour, molton, plain fabrics
Curtain tracks Studio & Studio Economy
Studio: up to 6 m free span
Systems11
Standard plug-in leg platform
Load: 750 kg/m², TÜV GS
Standard Plus plug-in leg platform
Frame height: 93 mm
Compact plug-in leg platform
Corner: M8/M10 threads
Eco plug-in leg platform
Groove: inside and outside
Flexible plug-in leg platform
Frame height: 80 mm
Scissor platform Scissor 100
Height: 20–100 cm, 5 settings
Mobile indoor stages
Fittings: no drilling (compact corner)
with portal and curtains for a theatre stage
Comparison
Comparable systems The alternatives side by side
Same job, different focus – the key specs next to each other.
Mobile stage cabinet
This page- Package
- platforms, frame, curtains, skirting
- Assembly
- at eye level, then raised
- Raising
- manual or motorised
- Package
- –
- Assembly
- –
- Raising
- –
- Package
- –
- Assembly
- –
- Raising
- –
Downloads
Brochure Stage cabinet, curtain tracks, curtains
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions
Questions about the stage cabinet
How long does set-up take?
A cabinet is ready for use within a few hours, because curtains and accessories are fitted on the floor and then raised. If it has to be faster, the cabinet is pre-assembled on the Rolltec stage and moved as a whole.
Which platforms do I need underneath?
We recommend scissor platforms Scissor 100 and Scissor 1000 or plug-in leg platforms Standard, Standard Plus, Compact, Eco and Flexible.
Can we start with just a part?
Yes. The cabinet is modular. Start, for example, with the frame and main curtain, and add wings, back curtain or hoists later.
How are lights and sound fixed?
To the combination profiles of the cabinet. After assembly the accessories are raised completely, by hand with cranks or by motor. More under hoist systems.
Can the cabinet be fixed to a wall or ceiling?
Yes, with wall brackets or on ceiling beams. Special sizes for niches are also possible.
How big should your stage be? We plan the cabinet for your hall
Tell us the hall size, ceiling height, the stage size you want and the platforms you have. You receive a proposal and a quote.
