Stage roofs · Small stage roof

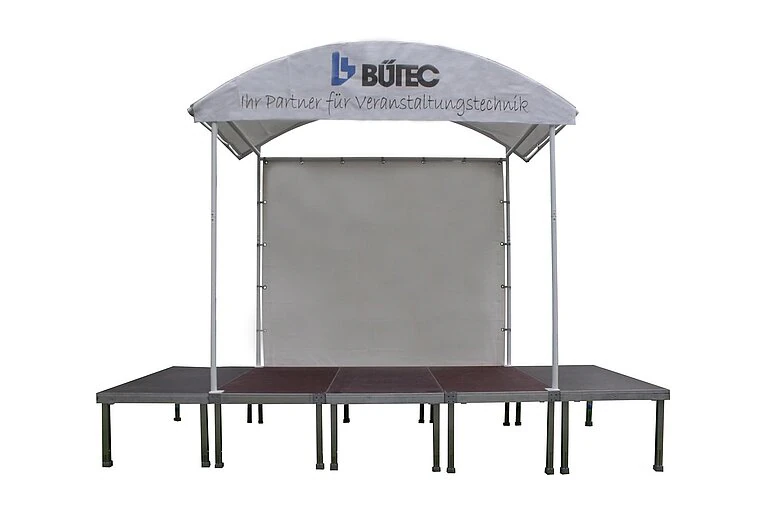

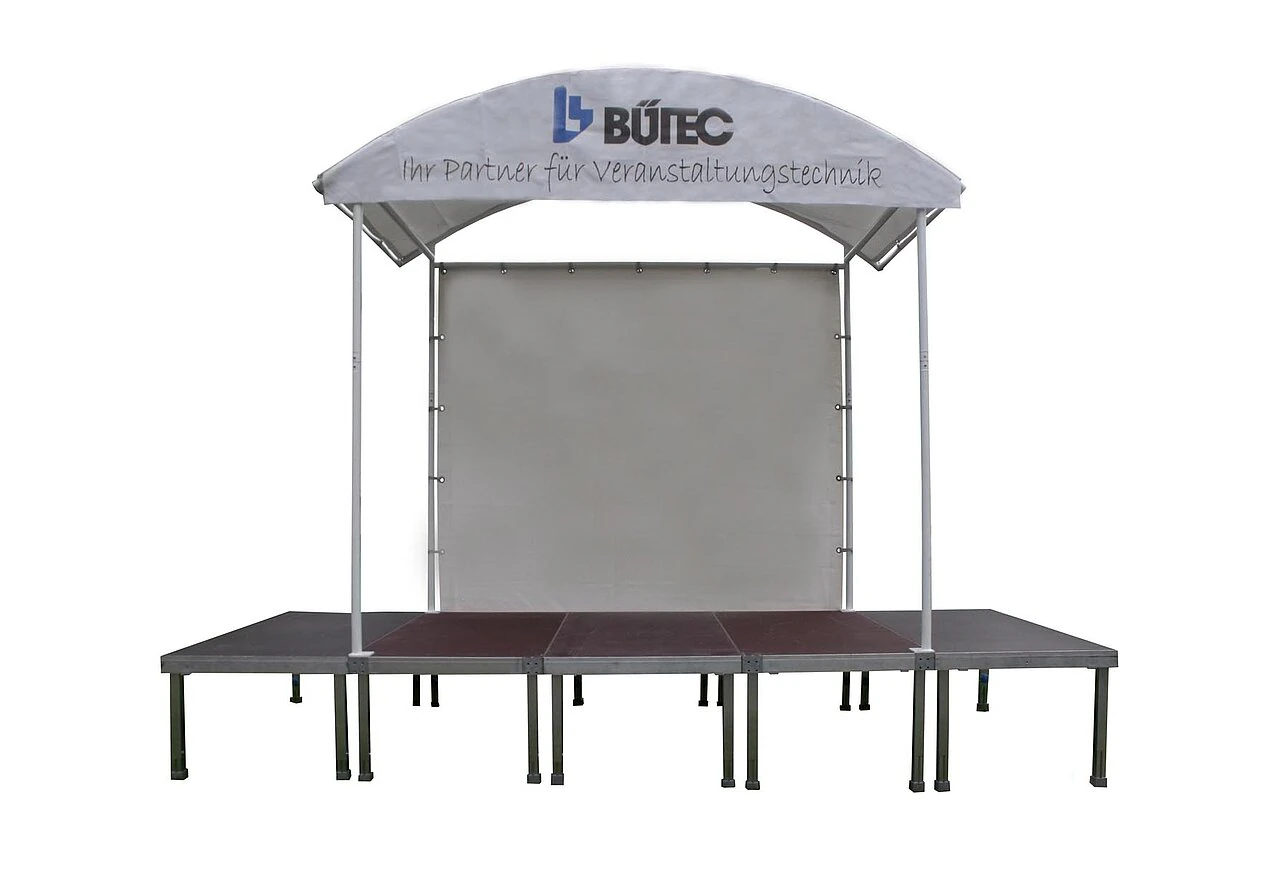

Starlight small stage roof Bolted onto the stage, easy enough for non-professionals
Starlight is the compact roof for small stages, the control position, the exhibition stand or the promotion stage. The roof supports are bolted securely onto Compact platforms, and the light aluminium round-tube structure is easy to set up, take down and transport – even for non-professionals.
- Sizes3 × 2, 4 × 3, 5 × 4 m
- Mountingbolted onto Compact platforms
- Terrainlevelled with telescopic legs
- Wind bracingincluded
- Proof of stabilityincluded with 5 × 4 m
Benefits
Light to transport, big in use
Up quickly
The aluminium tube structure plugs together with the proven connectors from the truss system – no professional crew needed.
Firmly connected to the stage
The Compact system lets you bolt the roof supports securely onto the stage surface. Wind bracing is always included.
Stands on sloping ground too
Stepless telescopic legs level uneven ground to the millimetre.
Tarpaulin in your colour
Roof, side and back tarpaulins in the colour of your choice, pulled into a specially developed keder rail profile. Front valance optional.
Easy to transport
The light round-tube structure is particularly easy to transport and lasts a long time.
Complete package
With platforms, railing, stairs and handrails, you get the stage and the roof from one manufacturer.
Sizes
Three sizes Which Starlight suits your use?
| Size | Standard platforms | Compact platforms | Roof height above stage | Proof of stability |
|---|---|---|---|---|
| 3 × 2 m | 1 | 2 | approx. 2.20 m | – |
| 4 × 3 m | 2 | 4 | approx. 2.30 m | – |
| 5 × 4 m | 6 | 4 | approx. 2.50–3 m | included |
All sizes: frame tube Ø 50/2.5 mm, roof, side and back tarpaulins in the colour you choose, wind bracing included, front valance at extra cost.
Technical data
Starlight at a glance
Construction
- Structure
- aluminium round tube Ø 50/2.5 mm with connectors from the truss system
- Fixing
- roof supports bolted onto Compact platforms
- Ground
- levelled by stepless telescopic legs
- Tarpaulin fixing
- aluminium keder rail profile with side channels
- Wind protection
- wind bracing, included with every size
Equipment
- Tarpaulins
- roof, side and back tarpaulins, colour of your choice
- Optional
- front valance, double roof
- Accessories
- railing, stairs, handrails
- Documents
- proof of stability included with the 5 × 4 m
Accessories
Works with Accessories and systems for Starlight small stage roof
Everything that goes with this product, sorted by task. Add parts straight to your enquiry.
Railings
Material: steel or aluminium
Legs & feet1
Plug-in & telescopic legs
Plug-in legs: 40, 50, 60 mm, round Ø 48 mm
Trusses9
4-point trusses
Types: F24, F34, F44
Arched, gable and pent roofs are built from 4- and 3-point trusses
3-point trusses
Types: F23, F33, F43
Arched, gable and pent roofs are built from 4- and 3-point trusses
Trusses
Profiles: 2-, 3- and 4-point
Truss F23
Profile: 3-point · 220 × 195 mm
Truss F24
Profile: 4-point · 220 × 220 mm
Truss F33
Profile: 3-point · 287 × 258 mm
Truss F34
Profile: 4-point · 287 × 287 mm
Truss F43
Profile: 3-point · 398 × 346 mm
Truss F44
Profile: 4-point · 398 × 398 mm
Curtains1
Lighting & sound
Offer: complete package or tailored
Systems7
Standard plug-in leg platform
Load: 750 kg/m², TÜV GS
Mobile outdoor stages
Legs: stepless telescopic legs
Stationary stages
Height: by gas spring, no power
Mobile terraces
Anchoring: not required
Where it is used
One roof, many jobs Where Starlight stands
Control position (FoH)
The lighting and sound control centre under its own roof – a common use for Starlight in the event industry.

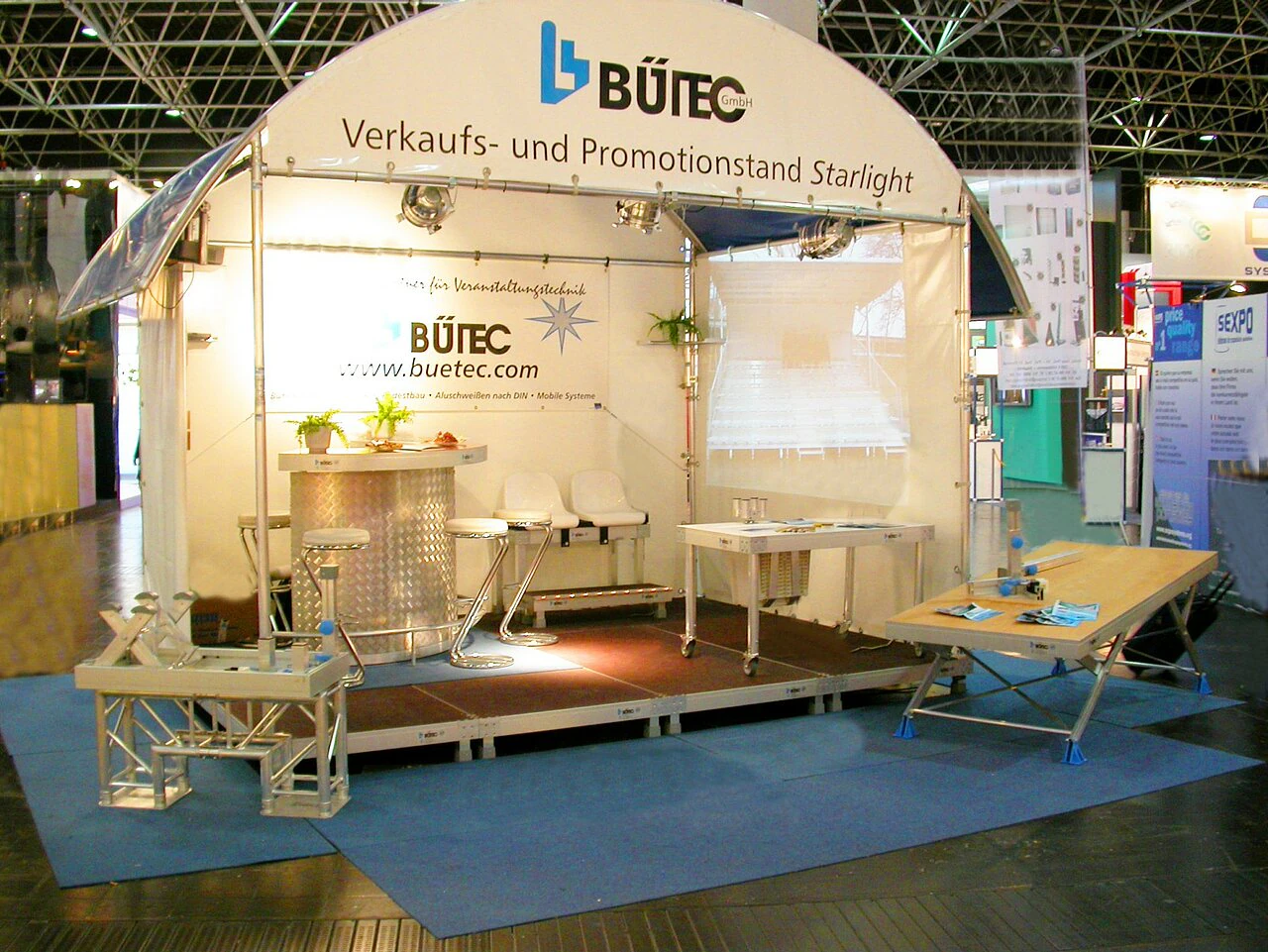

Exhibition and market stands
For smaller presentations and demonstrations – or as weather protection for the stand and the goods.
Lounge and presentation
A covered lounge or presentation area.

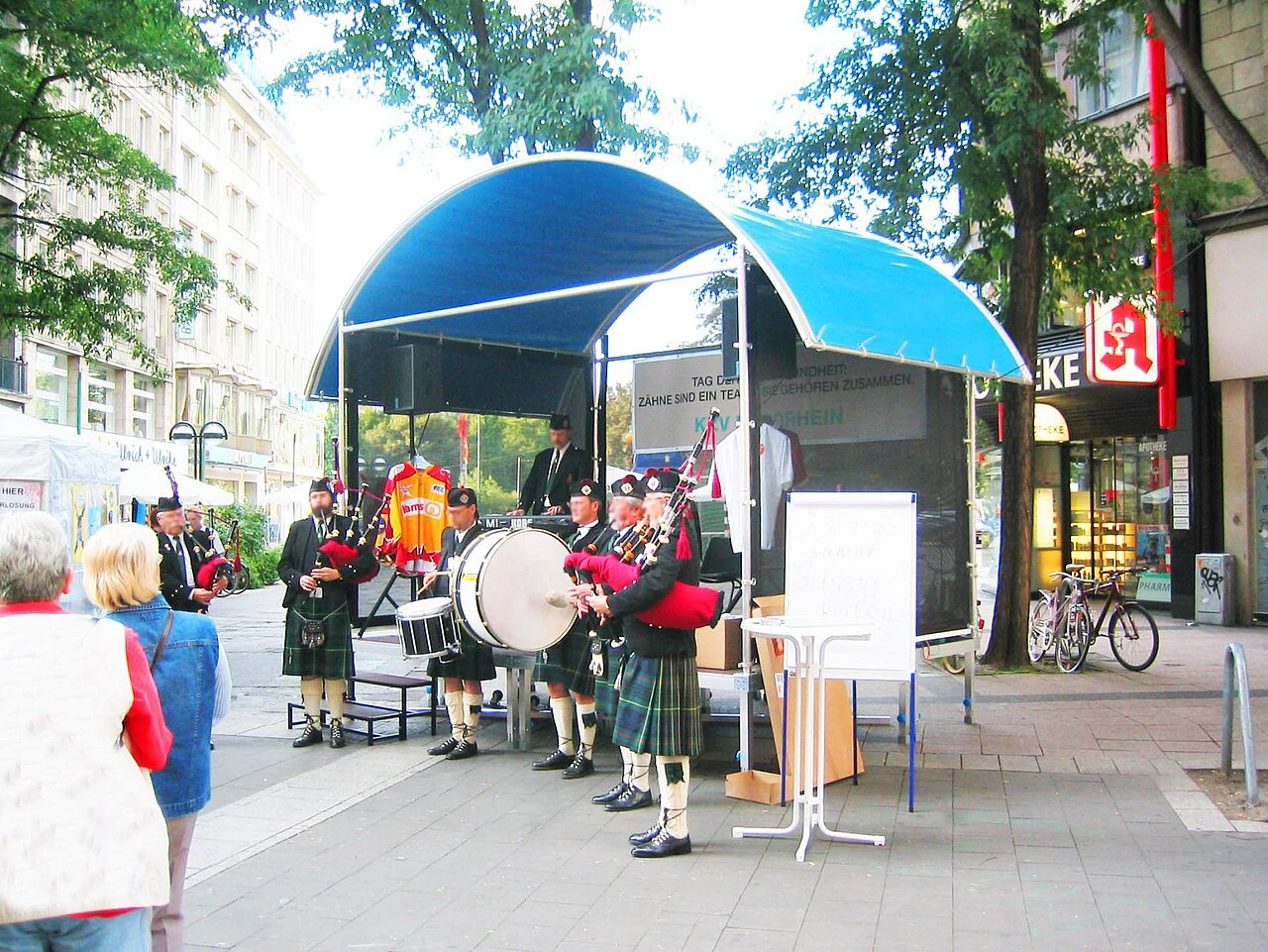

Promotion stage
A small stage with a roof for presenting, promotions and events.
In use
As FoH, double roof, exhibition stand Starlight in use
Downloads Catalogue and platform data sheet
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions
Crew, platforms, documents, wind Questions about the Starlight small stage roof
Can we set up Starlight without specialist staff?
Yes. Thanks to the light aluminium round-tube structure, even non-professionals can set up and take down the roof without difficulty.
Do I need BÜTEC platforms for it?
The roof supports are bolted onto Compact platforms – so it is best to ask for the complete package with stage platforms.
Is there a proof of stability?
The proof of stability is included with the 5 × 4 m. For the smaller sizes, please ask us.
What holds the roof in the wind?
The supports are bolted to the stage, and wind bracing is included with every size.
FoH, trade fair or promotion stage? We put your Starlight package together
Tell us the size, the use and the tarpaulin colour – we prepare a quote, complete with platforms if you wish.
Starlight small stage roof
3 × 2, 4 × 3, 5 × 4 m3 × 2, 4 × 3, 5 × 4 m · bolted onto Compact platforms
