Trusses · 3-point
Truss F23 3-point for short spans and circles up to 12 m

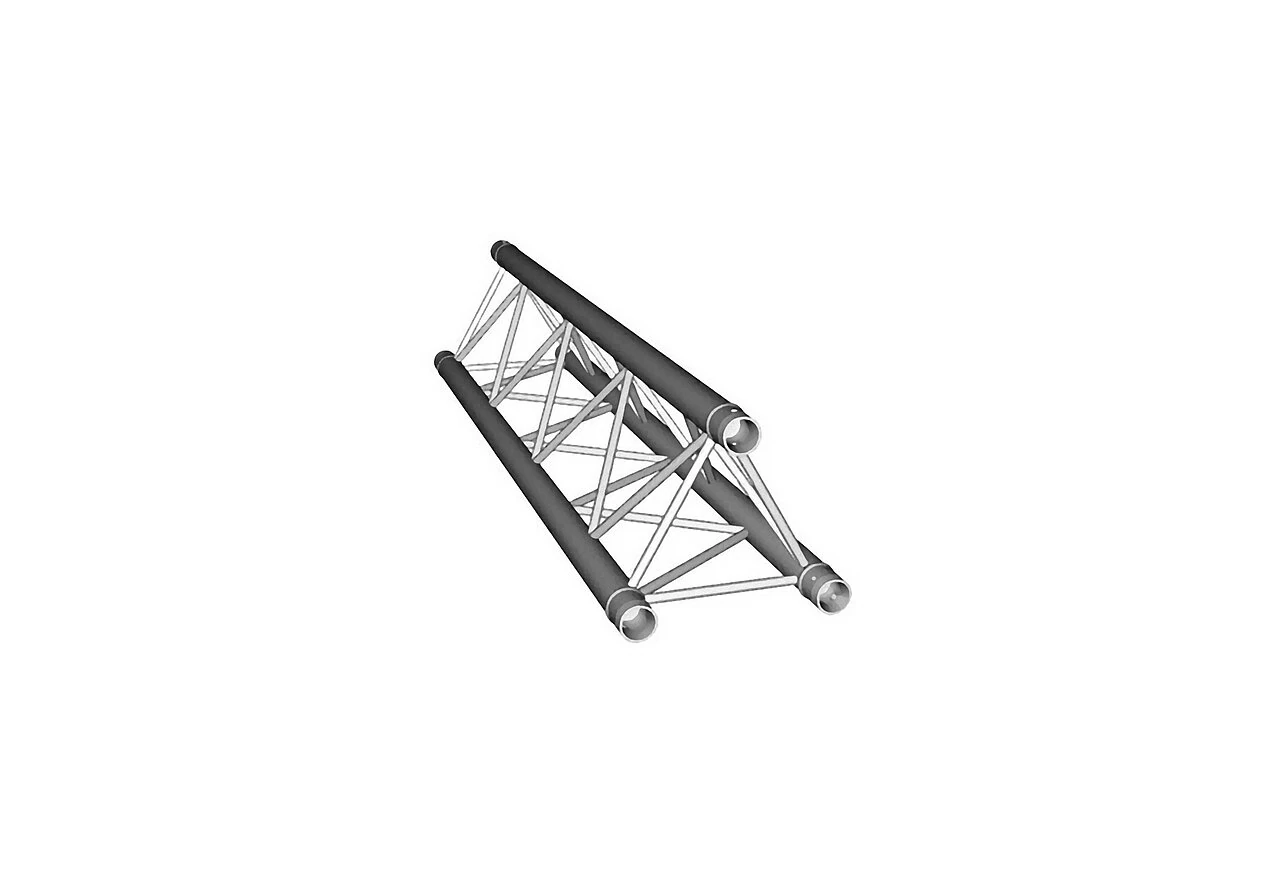

Truss F23
in various Lengths
Extensive
Range of Accessories
Opt. Powder Coating
in RAL colours
The F23 is the smallest BÜTEC 3-point truss: triangular profile 220 × 195 mm, 35 mm chord tubes, light and with a small transport volume. Besides straights up to 4 m it comes as circles from 2 to 12 m – for decoration, frames and exhibition stands.
- Profile3-point · 220 × 195 mm
- Chord tube35 × 2 mm
- Segments0.25–4 m, circles 2–12 m
- Load table2–14 m span
- TestingEurocode 9 tested
Benefits
Light, documented – and round if needed
Capacity on paper
Its own load table for spans of 2 to 14 m, prepared taking DIN EN 13814 (temporary structures) into account. Structural calculations available, tested to Eurocode 9.
Joined by cone
Conical connectors, truss pins and spring cotters for the F2x size class; according to the catalogue, the conical euro connection is compatible with various systems from other manufacturers.
Circles from 2 to 12 m
Besides straights and corners, the F23 is available as circles from 2 to 12 m.
Light to transport
According to the manufacturer, the F23 stands out for its low weight and small transport volume.
Technical data
Technical data Truss F23 at a glance
Profile and material
- Profile
- 3-point (triangular profile)
- Outer size
- W 220 × H 195 mm (centre-to-centre 185 × 160 mm)
- Chord tube
- 35 × 2 mm
- Bracing (diagonal)
- 10 × 2 mm
- Alloy
- EN AW 6060 T66
- Testing
- Eurocode 9 tested, structural calculations available
System
- Segment lengths
- 0.25 to 4 m (straights 25 to 400 cm), special lengths possible
- Circles
- 2 to 12 m
- Connection
- Conical connection; conical connectors, truss pins and spring cotters for F2x
- System parts
- Corners 45° to 135° (outside, inside, neutral), 3-way corners and T-pieces, 4-way cross and T-pieces, 5-way T-piece, base plate
- Finish
- Powder coating in RAL colours possible
Loads and use
- Load table
- Spans of 2 to 14 m: uniformly distributed load, centre point load, third-point load, each with deflection
- Basis
- prepared taking DIN EN 13814 (temporary structures) into account
- Use
- Shorter spans and small decoration jobs: frames, arches and circles, additions to exhibition stands
Permitted loads: see load table and data sheet. Outer sizes as stated in the data sheet.
Load table

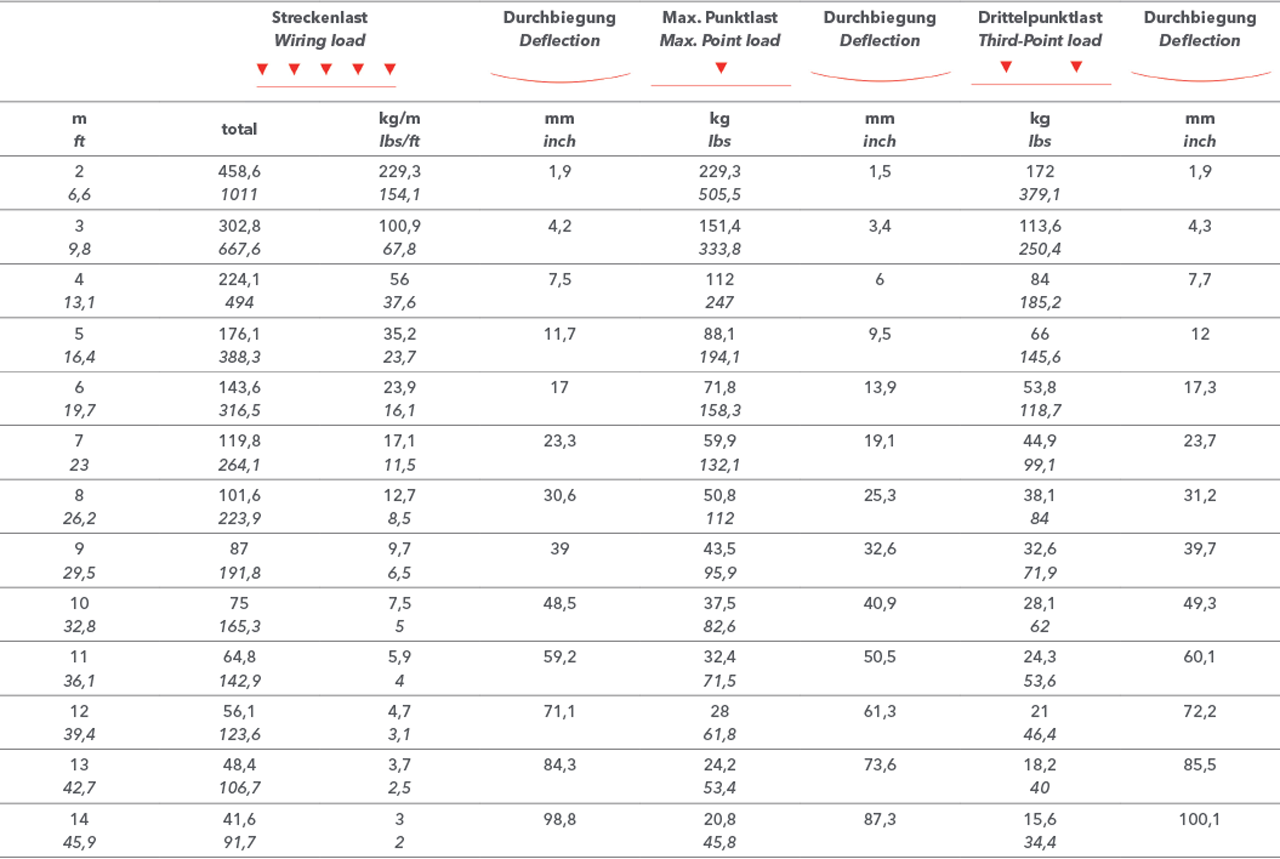

Load table F23 Permitted loads for spans of 2 to 14 m
Values from the F23 data sheet: permitted uniformly distributed load, centre point load and third-point load per span, each with deflection. The current data sheet is binding. For your specific construction we prepare structural calculations on request.
Tap to enlarge · swipe sideways
Choosing a size
Other 3-point sizes F23, F33 or F43?
| Type | Outer size | Chord tube | Segment lengths | Table for | Typical use |
|---|---|---|---|---|---|
| F23 | 220 × 195 mm | 35 × 2 mm | 0.25–4 m, circles | 2–14 m | shorter spans, decoration |
| F33 / F33 HD | 287 × 258 mm | 50 × 2 mm · HD 48 × 3 mm | 0.25–5 m, circles | 2–14 m | trade fair stands, event technology |
| F43 / F43 HD | 398 × 346 mm | 50 × 2 mm · HD 48 × 3 mm | 0.25–5 m, circles | 3–14 m | medium spans |
“Table for” = span range covered by the load table; “circles” = 2 to 12 m.
Accessories
Matching accessories Clamps, connectors and more for the F23
Connectors and spacers match the F2x size class; clamps and couplers are TÜV-tested.
Legs & feet11
Aluminium base plates
Weight: 5 to 21 kg
Square base plate 500 mm, aluminium
Dimensions: 500 × 500 × 8 mm
Square base plate 800 mm, aluminium
Dimensions: 800 × 800 × 8 mm
Square base plate 1000 mm, aluminium
Dimensions: 1000 × 1000 × 8 mm
Round base plate 800 mm, aluminium
Dimensions: Ø 800 mm, 8 mm thick
Steel base plates
Weight: 16 to 63 kg
Square base plate 500 mm, steel
Dimensions: 500 × 500 × 8 mm
Square base plate 800 mm, steel
Dimensions: 800 × 800 × 8 mm
Square base plate 1000 mm, steel
Dimensions: 1000 × 1000 × 8 mm
Round base plate 800 mm, steel
Dimensions: Ø 800 mm, 8 mm thick
Connectors2
Connectors F22/23/24
For: F22, F23, F24
Spacers F22/23/24
For: F22, F23, F24
Lighting & mounting2
Half clamps (half couplers)
Load capacity: 10 to 750 kg
Clamps (multiclamps)
Load capacity: 15 to 250 kg
Roofs4
Roofs
Up to 5 m high: with proof of stability
Arched, gable and pent roofs are built from 4- and 3-point trusses
Arched roof
Tarps: single webs in keder rails
Gable roof
Front: 4-point truss for stage lighting
Pent roof
Front: crossbar for light and sound
Downloads Data sheet and parts list for the F23
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions about truss F23
How much does the F23 carry at my span?
That is in the load table above and in the data sheet: for spans of 2 to 14 m, the permitted uniformly distributed load, the centre point load and the third-point load, each with deflection. For your specific construction with load points, suspension or towers, we prepare structural calculations on request.
Does the F23 fit trusses from other makers?
The F23 is joined with a conical euro connection. According to the BÜTEC catalogue, this connection is compatible with various systems from other manufacturers; bolted connections are also possible. Tell us the maker and type of your stock and we will check the fit.
Is the F23 available in special lengths or in colour?
Yes. Our own certified aluminium welding department makes special lengths and shapes; powder coating is available in RAL colours. Circles are available from 2 to 12 m.
Know your span? We put the F23 together for your job
Tell us spans, loads and layout. We put together lengths, corners and accessories for the F23 and prepare a quote – with structural calculations if you need them.
