Trusses · 4-point

Truss F24 The compact 4-point truss in 220 mm

Truss F24
Truss F24

Truss F24
in various Lengths

Extensive

Extensive
Range of Accessories

Opt. Powder Coating

Opt. Powder Coating
in RAL colours

Truss F24 in various LengthsExtensive Range of AccessoriesOpt. Powder Coating in RAL colours

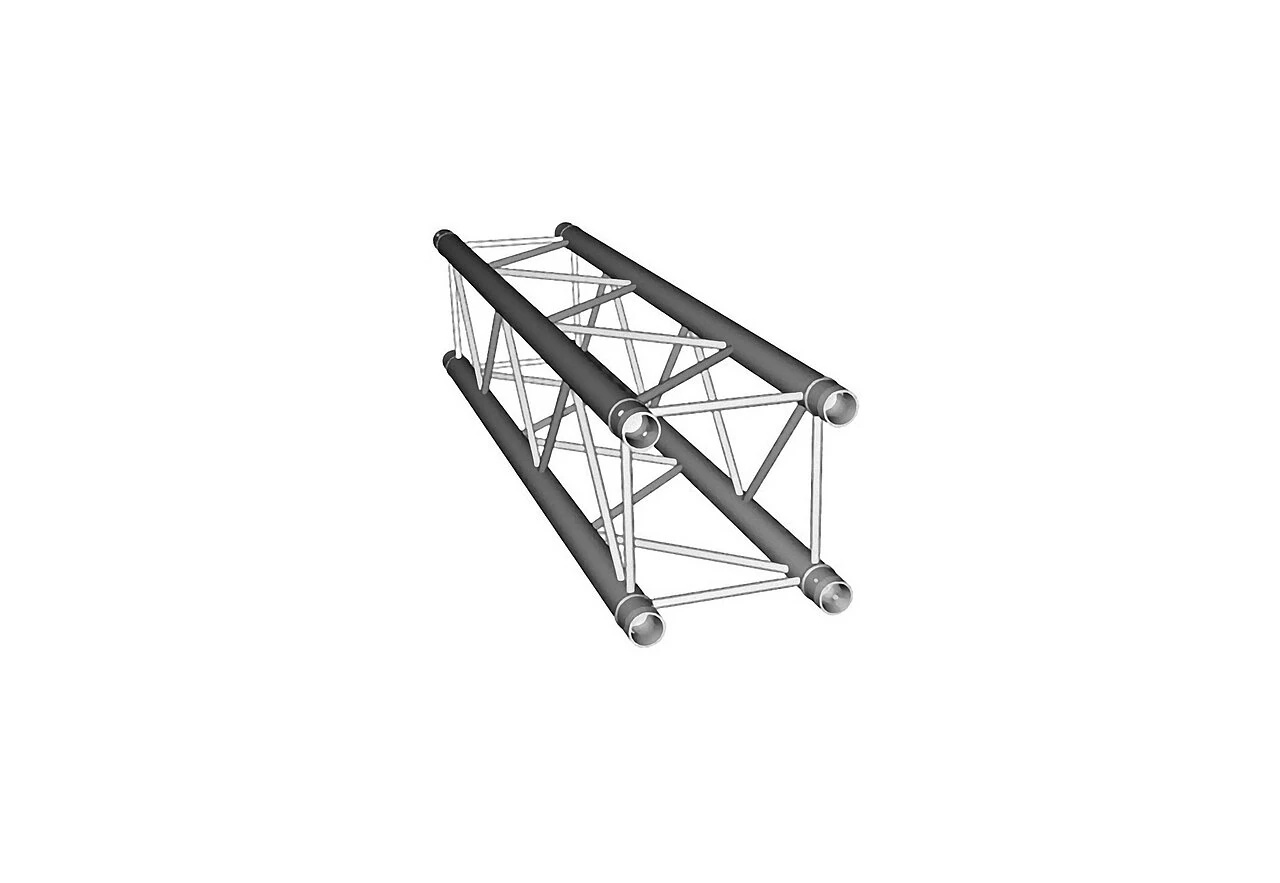

The F24 is the smallest BÜTEC 4-point truss: 220 × 220 mm, 35 mm chord tubes, light and with a small transport volume. With multi corners and 5- and 6-way corners you build frames and spatial structures for decoration, exhibition stands and screens.

  • Profile4-point · 220 × 220 mm
  • Chord tube35 × 2 mm
  • Segments0.25–4 m
  • Load table2–14 m span
  • TestingEurocode 9 tested
Request a quote
Start the product finderData sheet F24 (PDF)

Benefits

Compact, with corners in every direction

  • Capacity on paper

    Its own load table for spans of 2 to 14 m, prepared taking DIN EN 13814 (temporary structures) into account. Structural calculations available, tested to Eurocode 9.

  • Joined by cone

    Conical connectors, truss pins and spring cotters for the F2x size class; according to the catalogue, the conical euro connection is compatible with various systems from other manufacturers.

  • Light to transport

    According to the manufacturer, the F24 stands out for its low weight and small transport volume.

  • Special lengths and RAL

    Special lengths and shapes from our own welding shop; powder coating in RAL colours possible.

Technical data

Technical data Truss F24 at a glance

Profile and material

Profile
4-point (square box profile)
Outer size
220 × 220 mm (centre-to-centre 185 mm)
Chord tube
35 × 2 mm
Bracing (diagonal)
10 × 2 mm
Alloy
EN AW 6060 T66
Testing
Eurocode 9 tested, structural calculations available

System

Segment lengths
0.25 to 4 m (straights 25 to 400 cm), special lengths possible
Connection
Conical connection; conical connectors, truss pins and spring cotters for F2x
System parts
Multi corner, corners 45° to 135°, 3-way corner 90°, 3- and 4-way T-piece, 4-way cross, 5- and 6-way corner, radius, base plate
Finish
Powder coating in RAL colours possible

Loads and use

Load table
Spans of 2 to 14 m: uniformly distributed load, centre point load, third-point load, each with deflection
Basis
prepared taking DIN EN 13814 (temporary structures) into account
Use
Shorter spans and small decoration jobs: frames for banners and screens, additions to exhibition stands

Permitted loads: see load table and data sheet. Outer sizes as stated in the data sheet.

Load table

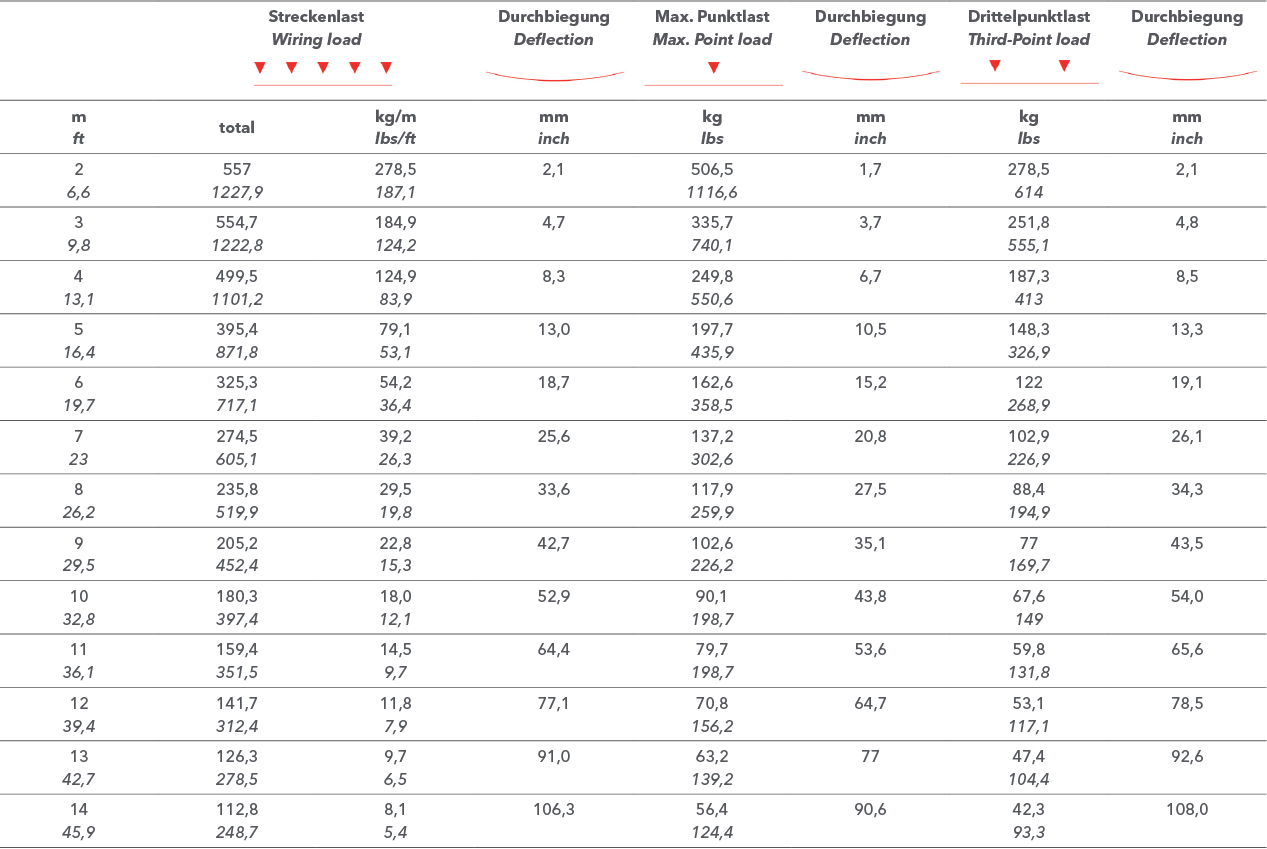

Load table F24 Permitted loads for spans of 2 to 14 m

Values from the F24 data sheet: permitted uniformly distributed load, centre point load and third-point load per span, each with deflection. The current data sheet is binding. For your specific construction we prepare structural calculations on request.

Load Table

Tap to enlarge · swipe sideways

Choosing a size

Other 4-point sizes F24, F34 or F44?

TypeOuter sizeChord tubeSegment lengthsTable forTypical use
F24220 × 220 mm35 × 2 mm0.25–4 m2–14 mshorter spans, decoration
F34 / F34 HD287 × 287 mm50 × 2 mm · HD 48 × 3 mm0.25–5 m, circles2–14 mtrade fair, events, towers and roofs
F44 / F44 HD398 × 398 mm50 × 2 mm · HD 48 × 3 mm0.25–5 m, circles2–14 mmedium spans

“Table for” = span range covered by the load table; “circles” = 2 to 12 m.

Accessories

Matching accessories Clamps, connectors and more for the F24

Connectors and spacers match the F2x size class; clamps and couplers are TÜV-tested.

  • Roofs

    Up to 5 m high: with proof of stability

    Arched, gable and pent roofs are built from 4- and 3-point trusses

Downloads Data sheet and parts list for the F24

For planners

Tender text / CADOn request – we send you tender texts and CAD data for your project.Request

Questions about truss F24

How much does the F24 carry at my span?

That is in the load table above and in the data sheet: for spans of 2 to 14 m, the permitted uniformly distributed load, the centre point load and the third-point load, each with deflection. For your specific construction with load points, suspension or towers, we prepare structural calculations on request.

Does the F24 fit trusses from other makers?

The F24 is joined with a conical euro connection. According to the BÜTEC catalogue, this connection is compatible with various systems from other manufacturers; bolted connections are also possible. Tell us the maker and type of your stock and we will check the fit.

Is the F24 available in special lengths or in colour?

Yes. Our own certified aluminium welding department makes special lengths and shapes; powder coating is available in RAL colours.

Know your span? We put the F24 together for your job

Tell us spans, loads and layout. We put together lengths, corners and accessories for the F24 and prepare a quote – with structural calculations if you need them.

Request a quoteData sheet F24 (PDF)
