Base plates
Dollies for base plates Roll base plates instead of carrying them

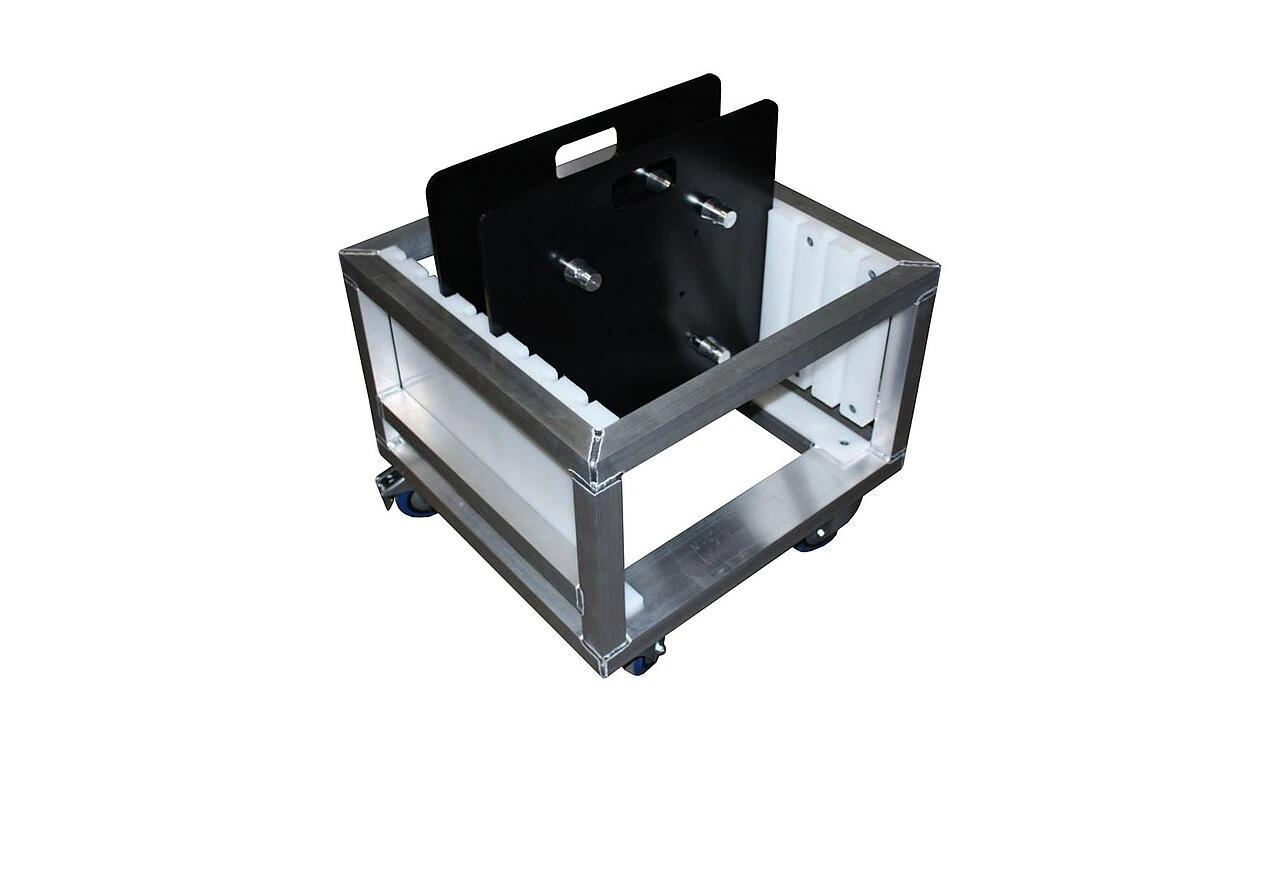

Dolly for Plates
500 x 500 mm

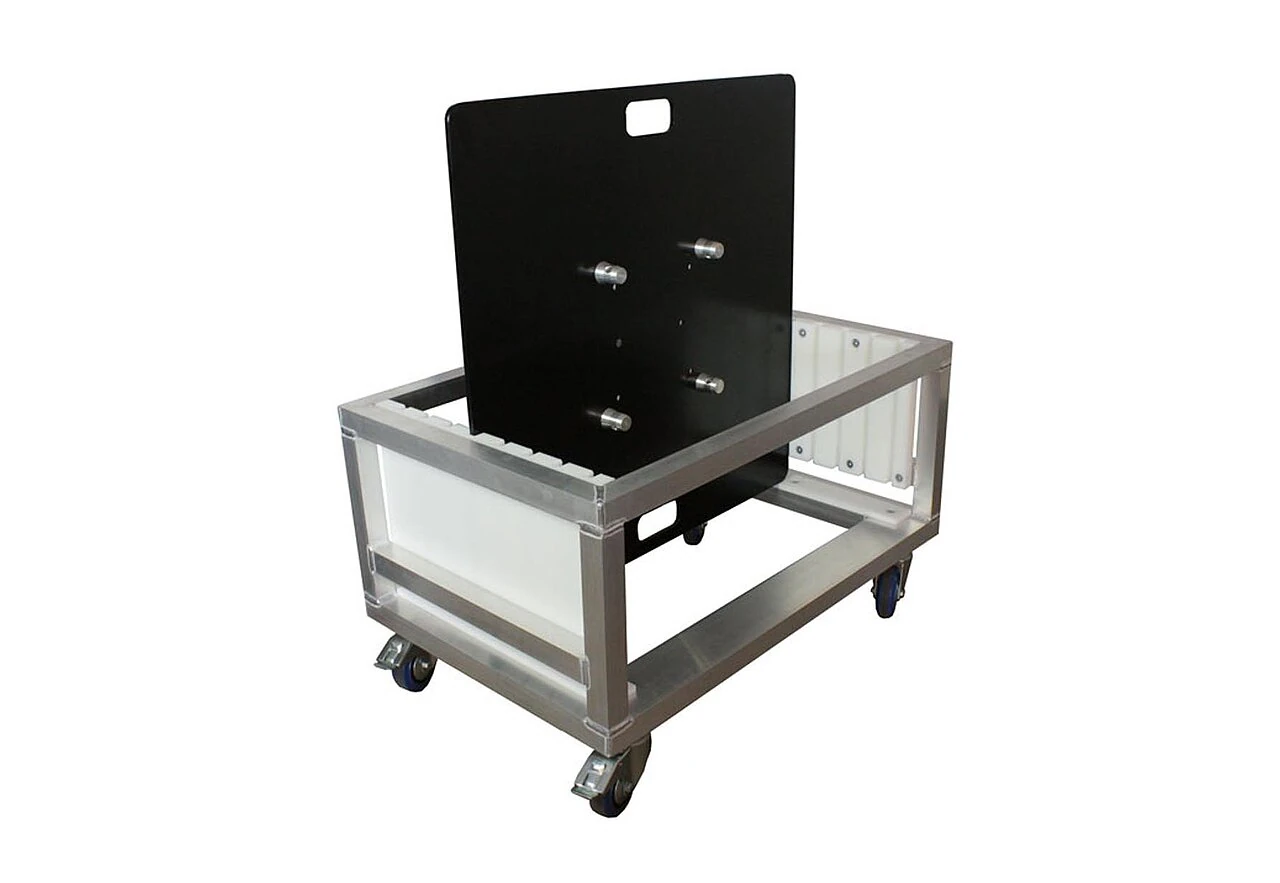

Dolly for Plates
800 x 800 mm

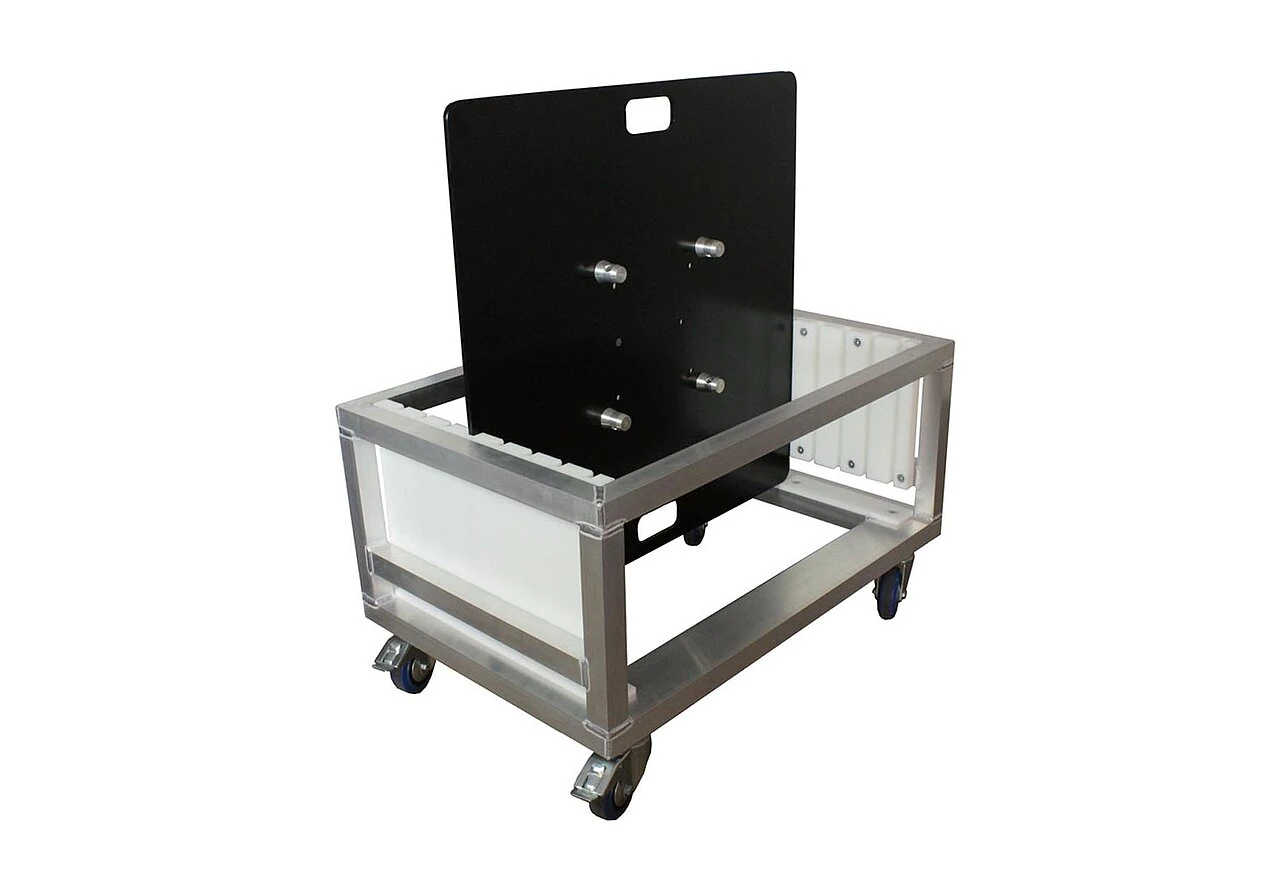

Dolly for Plates
1000 x 1000 mm

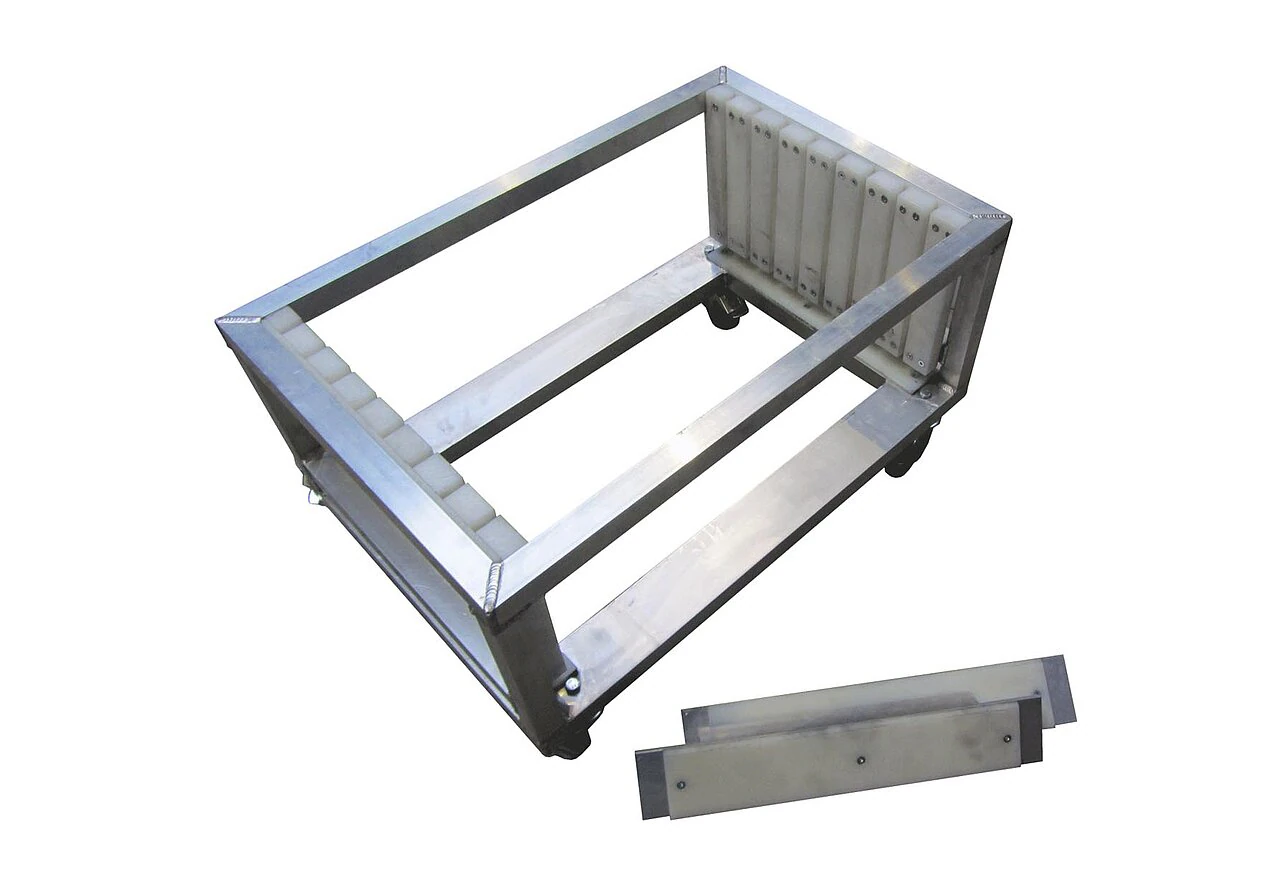

Additional Insert for
round Plates 800 mm
With the BÜTEC dollies you move and store truss base plates on castors: for 500 × 500, 800 × 800 and 1000 × 1000 mm, plus an insert for round 800 mm plates. Fixed castors and braked swivel castors; a polyamide lining protects the plates from scratches.
- For500, 800, 1000 mm, insert for round 800 mm
- Castorsfixed and braked swivel castors
- Protectionpolyamide lining against scratches
Benefits
Transport and storage in one
On castors
Fixed castors and braked swivel castors: push the plates and park them safely.
Transport and storage
The dolly holds the plates in transport and in storage.
No scratches
A polyamide lining protects the plates from scratches.
Technical data
Technical data Dollies at a glance
- For plate sizes
- 500 × 500, 800 × 800 and 1000 × 1000 mm
- Round plates
- insert for 800 mm
- Castors
- fixed castors and braked swivel castors
- Protection
- polyamide lining
Compatible
Fits The systems Dollies for base plates is made for
This accessory is designed for these systems. Fit notes are shown with each entry.
Square base plate 800 mm, aluminium
Dimensions: 800 × 800 × 8 mm
Square base plate 1000 mm, aluminium
Dimensions: 1000 × 1000 × 8 mm
Round base plate 800 mm, aluminium
Dimensions: Ø 800 mm, 8 mm thick
Square base plate 500 mm, steel
Dimensions: 500 × 500 × 8 mm
Square base plate 800 mm, steel
Dimensions: 800 × 800 × 8 mm
Square base plate 1000 mm, steel
Dimensions: 1000 × 1000 × 8 mm
Round base plate 800 mm, steel
Dimensions: Ø 800 mm, 8 mm thick
Downloads Documents for Dollies for base plates
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Which plate size? We prepare your quote
Tell us the plate size and quantity – we prepare a quote.
Dollies for base plates
500, 800, 1000 mm, insert for round 800 mm500, 800, 1000 mm, insert for round 800 mm · fixed and braked swivel castors
