Trusses · 2-point
Truss F42 The 400 mm 2-point truss for medium spans
Truss F42
in various Lengths
Extensive
Range of Accessories
Opt. Powder Coating
in RAL colours
The F42 is the largest BÜTEC 2-point truss: 400 mm profile, 50 mm chord tubes, segments up to 5 m. It spans medium distances and combines with the F43 and F44 systems. Its load table covers 3 to 14 m.
- Profile2-point · 398 mm
- Chord tube50 × 2 mm
- Segments0.25–5 m
- Load table3–14 m span
- TestingEurocode 9 tested
Benefits
Large profile, matched to F43 and F44
Capacity on paper
Its own load table for spans of 3 to 14 m, prepared taking DIN EN 13814 (temporary structures) into account. Structural calculations available, tested to Eurocode 9.
Joined by cone
Conical connectors, truss pins and spring cotters for the F4x size class; according to the catalogue, the conical euro connection is compatible with various systems from other manufacturers.
Combines with F43 and F44
The F42 combines with the F43 and F44 systems; the F4x connectors and spacers fit all three.
Special lengths and RAL
Special lengths and shapes from our own welding shop; powder coating in RAL colours possible.
Technical data
Technical data Truss F42 at a glance
Profile and material
- Profile
- 2-point (two chord tubes, flat)
- Outer size
- 398 mm (centre-to-centre 350 mm)
- Chord tube
- 50 × 2 mm
- Alloy
- EN AW 6082 T6
- Testing
- Eurocode 9 tested, structural calculations available
System
- Segment lengths
- 0.25 to 5 m (straights 25 to 500 cm), special lengths possible
- Connection
- Conical connection; conical connectors, truss pins and spring cotters for F4x
- System parts
- Corners 45° to 135° (horizontal and vertical), 3-way corners and T-pieces, 4-way cross, T-piece and corners, base plate
- Finish
- Powder coating in RAL colours possible
Loads and use
- Load table
- Spans of 3 to 14 m: uniformly distributed load, centre point load, third-point load, each with deflection
- Basis
- prepared taking DIN EN 13814 (temporary structures) into account
- Deflection
- Table with deflection limited to L/100
- Use
- Medium spans, trade fair stands and event technology; combines with F43 and F44
Permitted loads: see load table and data sheet. Outer sizes as stated in the data sheet.
Load table

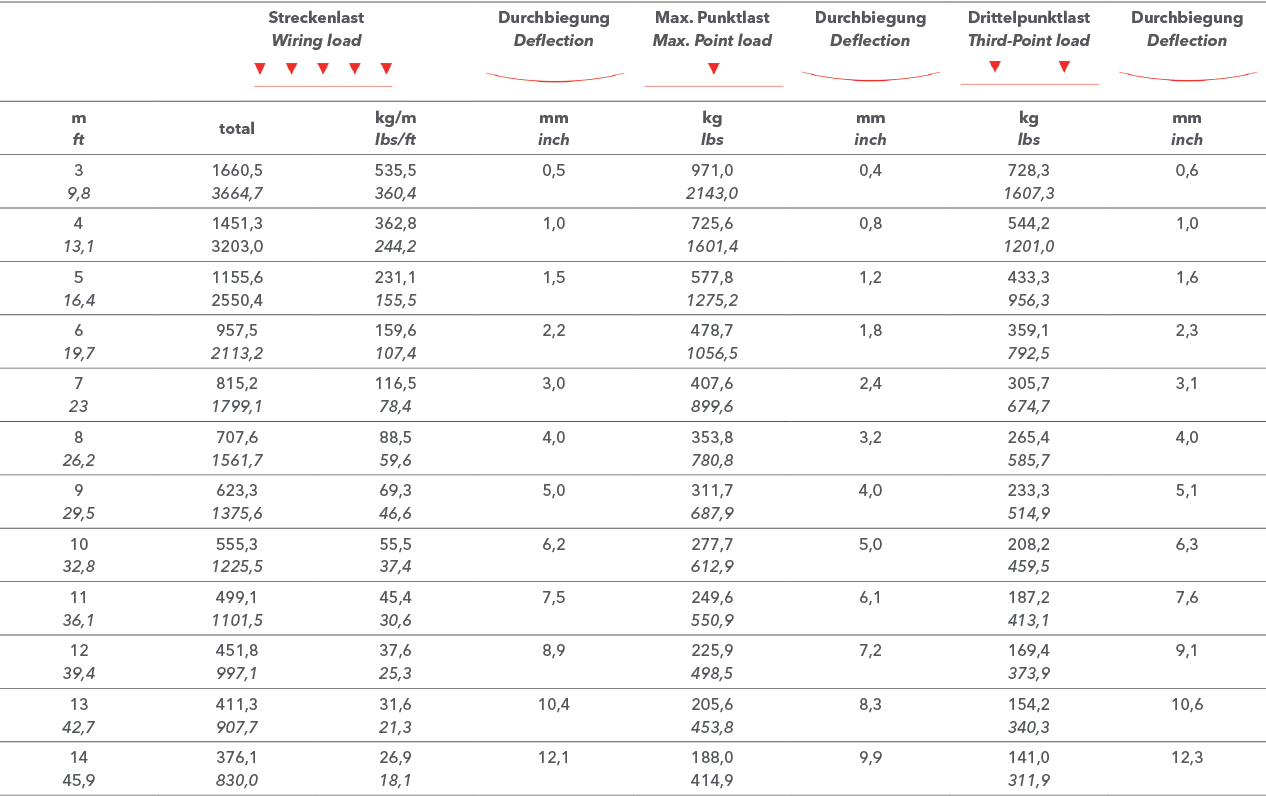

Load table F42 Permitted loads for spans of 3 to 14 m
Values from the F42 data sheet: permitted uniformly distributed load, centre point load and third-point load per span, each with deflection. The current data sheet is binding. For your specific construction we prepare structural calculations on request.
Tap to enlarge · swipe sideways
Choosing a size
Other 2-point sizes F22, F32 or F42?
| Type | Outer size | Chord tube | Segment lengths | Table for | Typical use |
|---|---|---|---|---|---|
| F22 | 220 mm | 35 × 2 mm | 0.25–4 m | 2–13 m | shorter spans, decoration |
| F32 | 287 mm | 50 × 2 mm | 0.25–5 m | 2–13 m | trade fair stands, event technology |
| F42 | 398 mm | 50 × 2 mm | 0.25–5 m | 3–14 m | medium spans |
“Table for” = span range covered by the load table; “circles” = 2 to 12 m.
Accessories
Matching accessories Clamps, connectors and more for the F42
Connectors and spacers match the F4x size class; clamps and couplers are TÜV-tested.
Connectors4
Spacers F42/43/44
For: F42, F43, F44
Wall bracket F42/43/44
For: F42, F43, F44
Wall bracket Eco F3x/F4x
For: F32, F33, F34, F42, F43, F44
Lighting & mounting2
Half clamps (half couplers)
Load capacity: 10 to 750 kg
Clamps (multiclamps)
Load capacity: 15 to 250 kg
Downloads Data sheet and parts list for the F42
For planners
Tender text / CADOn request – we send you tender texts and CAD data for your project.Request
Questions about truss F42
How much does the F42 carry at my span?
That is in the load table above and in the data sheet: for spans of 3 to 14 m, the permitted uniformly distributed load, the centre point load and the third-point load, each with deflection. For your specific construction with load points, suspension or towers, we prepare structural calculations on request.
Does the F42 fit trusses from other makers?
The F42 is joined with a conical euro connection. According to the BÜTEC catalogue, this connection is compatible with various systems from other manufacturers; bolted connections are also possible. Tell us the maker and type of your stock and we will check the fit.
Can the F42 be combined with F43 and F44?
Yes, according to the manufacturer the F42 combines with the F43 and F44 systems. Connectors and spacers exist for the whole F4x size class (F42, F43, F44).
Know your span? We put the F42 together for your job
Tell us spans, loads and layout. We put together lengths, corners and accessories for the F42 and prepare a quote – with structural calculations if you need them.
Truss F42
2-point · 398 mm2-point · 398 mm · 50 × 2 mm
