Wall brackets

Wall bracket Eco F3x/F4x Parallel or at right angles to the wall

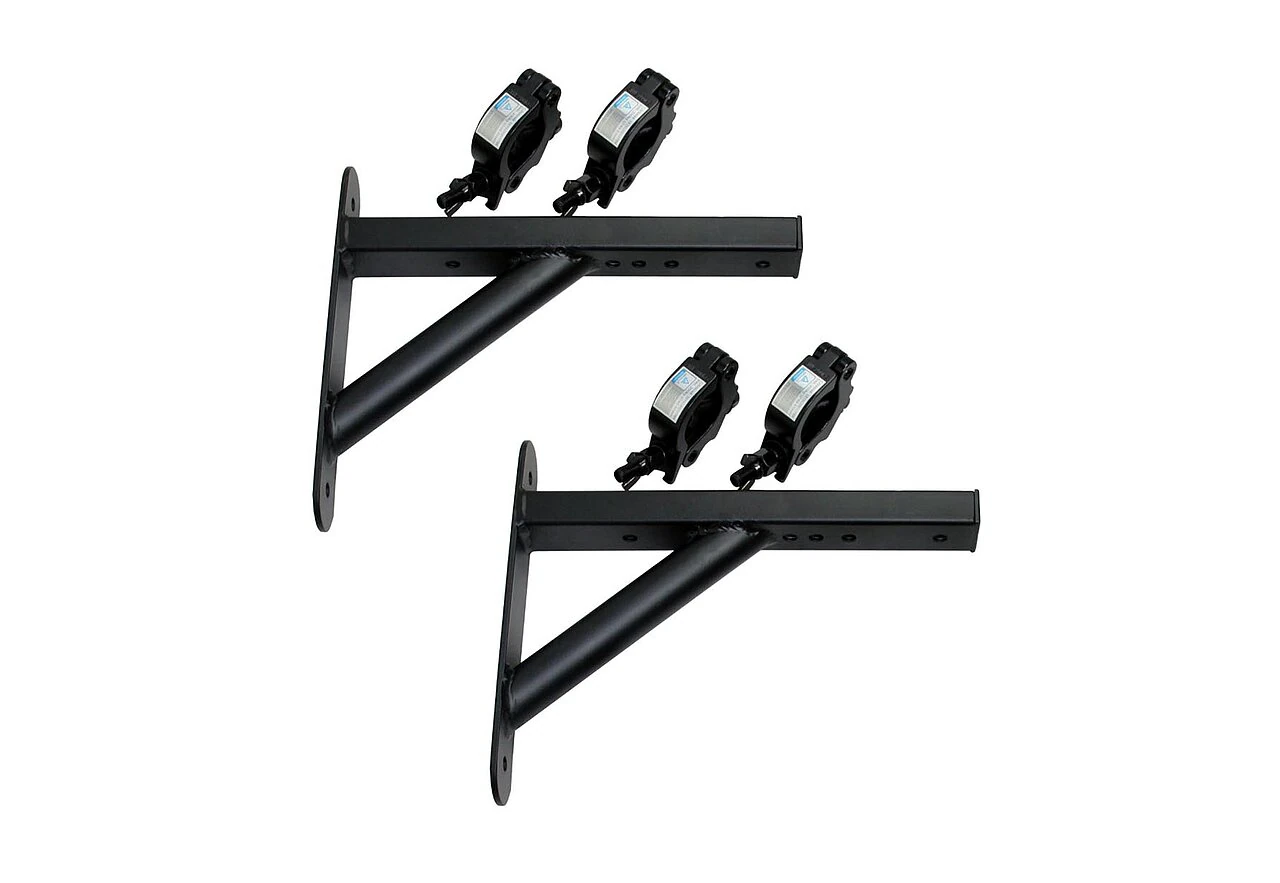

Truss Wall Bracket Eco

Steel wall bracket for BÜTEC trusses F32, F33, F34, F42, F43 and F44. It holds the truss parallel or at right angles to the wall. The set: 2 wall holders, 4 half couplers for 50 mm tube (slimline, black, 200 kg each) and 4 bolt sets coupler–wall bracket.

  • ForF32, F33, F34, F42, F43, F44
  • Mountingparallel or at right angles to the wall
  • Set2 wall holders, 4 slimline half couplers 200 kg each
  • Finishblack epoxy, RAL on request
Request a quote
Start the product finderAll wall brackets

Benefits

One set, two orientations

  • Parallel or at right angles

    The truss runs along the wall or projects into the room at a right angle.

  • Complete set

    2 wall holders, 4 slimline half couplers for 50 mm tube rated 200 kg each, 4 bolt sets coupler–wall bracket.

  • Steel, black epoxy

    Other RAL colours on request.

Technical data

Technical data Wall bracket Eco at a glance

Material
Steel
Fits
F32, F33, F34, F42, F43, F44
Orientation
parallel or at right angles to the wall
Set
2 wall holders, 4 half couplers for 50 mm tube (slimline, black, 200 kg each), 4 bolt sets coupler–wall bracket
Finish
black epoxy coated, other RAL colours on request

Compatible

Fits The systems Wall bracket Eco F3x/F4x is made for

This accessory is designed for these systems. Fit notes are shown with each entry.

Downloads Documents for Wall bracket Eco F3x/F4x

For planners

Tender text / CADOn request – we send you tender texts and CAD data for your project.Request

Parallel or at right angles? We prepare your quote

Tell us the truss type, orientation and number of fixing points – we prepare a quote.

Request a quoteAll wall brackets
